Chapter 4 Logical Printer Setup and Operation (6030/6050 only)
Settings The settings for this function are as follows.
Menu Item Description
Auto Mapping Sets whether the automatic mapping functions is to be
enabled or not.
The output paper size that best matches the output image
size will be determined automatically when this function is
set to [Enable]. The values specified in paper mapping
will be invalidated.
Size
(fixed)
The value entered here is used as the input size when
[Output] has been specified.
The value entered here is used as the output size when
[Media Type] has been specified.
The paper size displayed will differ in accordance with the
[Input size] parameter set for the Media series.
Output Sets the size of the output image in relation to the input
size (size mapping).
The paper size selected will differ in accordance with the
[Output size] parameter set for the Media series.
Paper Sets the size of the paper that is to be actually output in
relation to the output size when automatic mapping has
been set to [NO] (media mapping).
There are cases where the input image will be rotated for
output purposes depending on the paper size specified
here.
The paper size selected will differ in accordance with the
[Media size] parameter set for the Media series.
Refer to the section on "Media Series" for further details on paper groups.

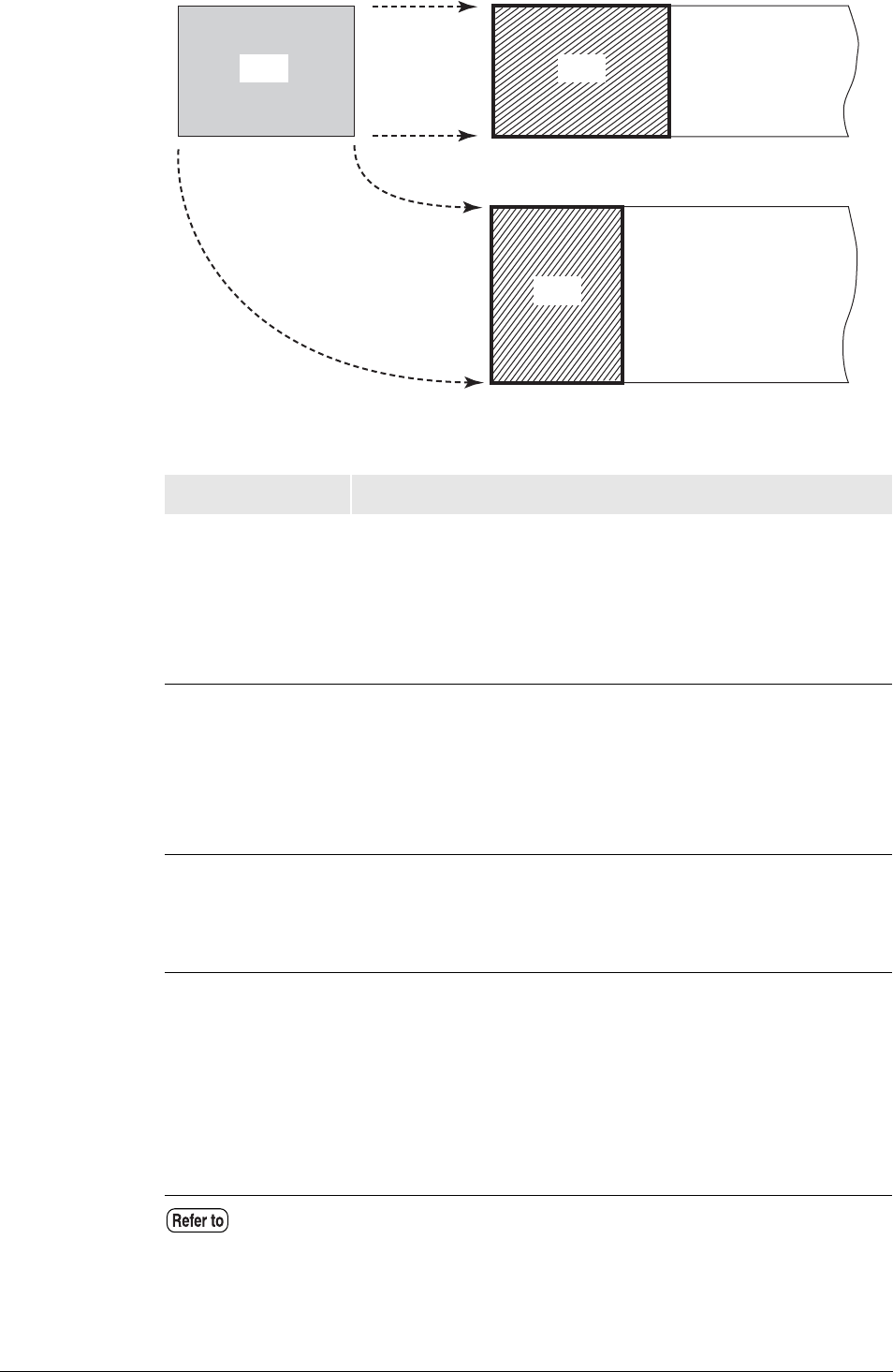

Output image size
Paper
Output on the A3
roll media
Output on the A2
roll media
Rotated 90 degrees
A3 A3
A3
