4.1 Creating a New Logical Printer

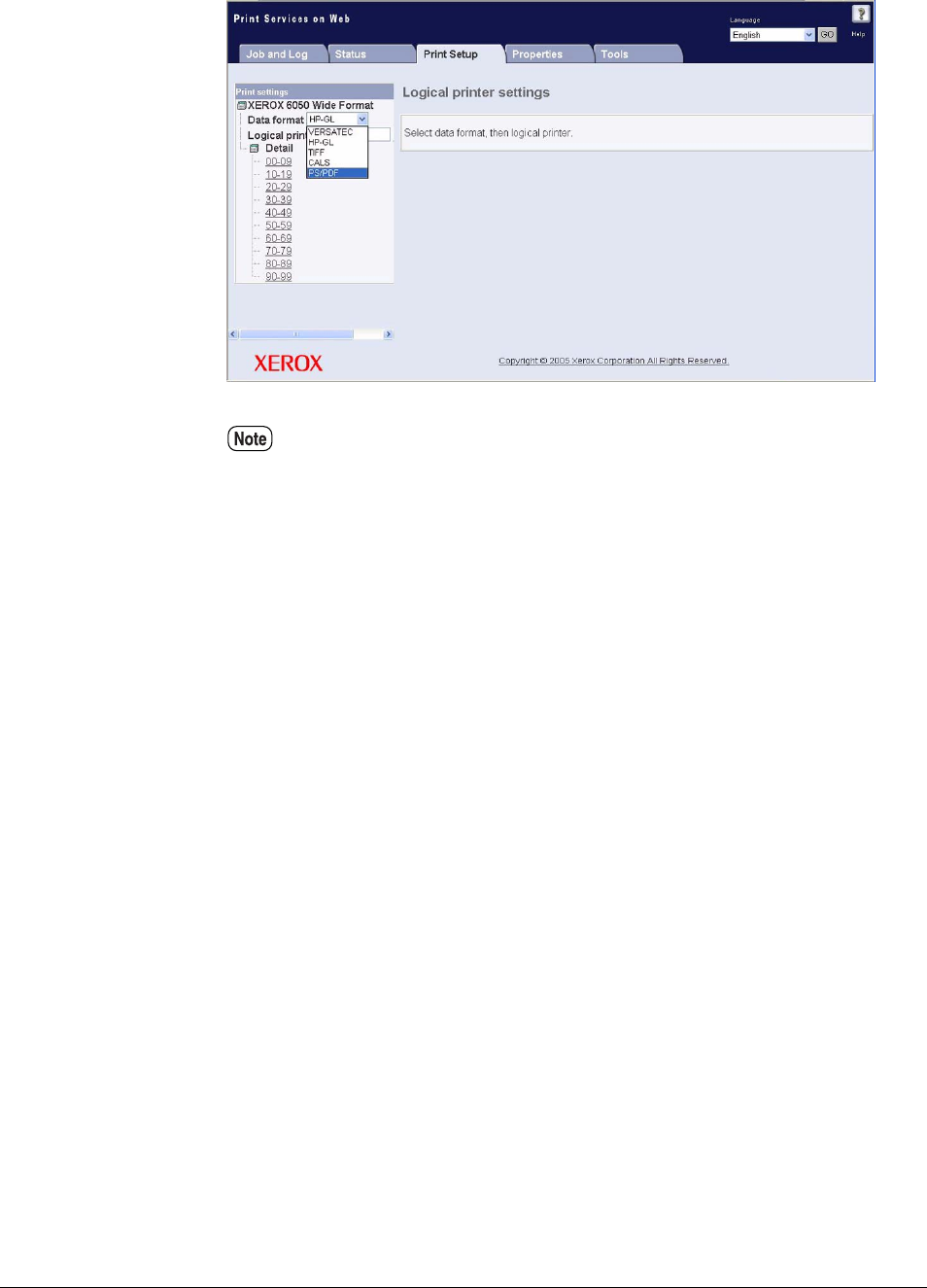

3 Select the data format for the new logical printer from the [Data format]
menu.
The selections include [Versatec], [HP-GL], [TIFF], [CALS], and
optionally, [PS/PDF].
The logical printers are pre-configured in the factory to their default print
settings. These defaults, as well as the options you can select, are
defined in the upcoming section
"4.2 Defining the Print Settings". When
you display a list of logical printers, as in step 4, the current print
settings will display.
To identify a logical printer whose factory defaults have not been
changed, look for one that displays only the factory defaults. As a clue
to identifying logical printers that have been set up for local use, check
the
" Media Series" or" User-Defined Size" parameters. These
parameters are often customized to meet local needs.
