3.11 Printing a Configuration List (6050A)
3.11
Printing a Configuration List (6050A)
The procedures below explain how to print a configuration list that shows the
hardware and software configuration, communication parameter (port) settings,
and system parameter settings of the printer. This list may be printed from either
the printer control panel or Web Printer Management Tool.
From the Printer Control Panel
1 Press the < > key with [UTILITIES]
displayed.
2 [TEST PRINT] is the first menu choice.
Press the <
> key.
3 [PRINTER CONFIGURATION] is the first
menu choice. Press the <Set> key.
The printer configuration list will be printed.
From Web Printer Management Tool

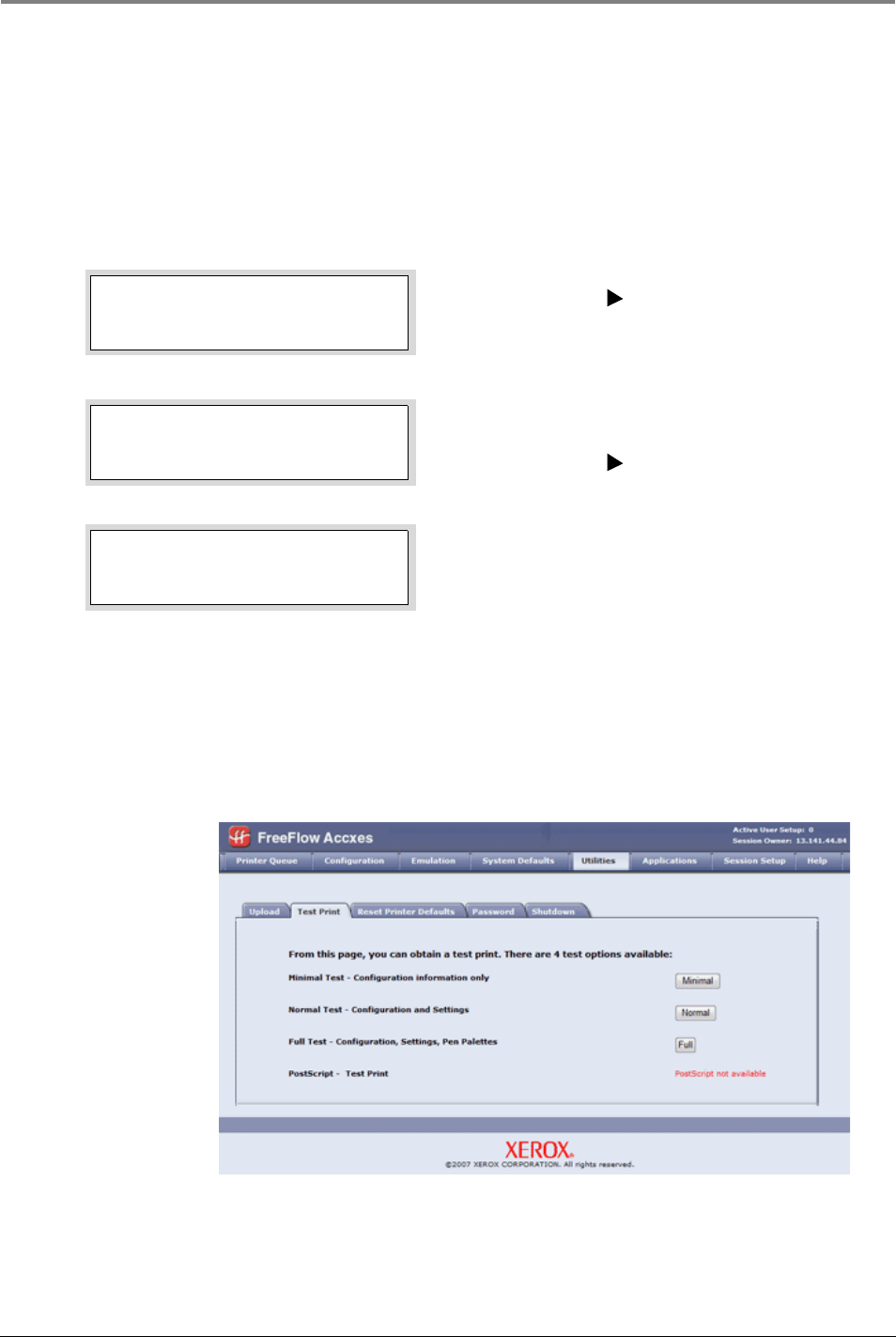

1 Type in the appropriate URL into your web browser to access Web
Printer Management Tool. Click on the [Utilities] tab.
MENU
UTILITIES
UTILITIES
TEST PRINT
TEST PRINT
PRINTER CONFIGURATION
