3.10 Printing a Configuration List (6030/6050)
3.10
Printing a Configuration List (6030/
6050)
The procedures below explain how to print a configuration list that shows the
hardware and software configuration, communication parameter (port) settings,
and system parameter settings of the printer. This list may be printed from either
the printer control panel or Print Services on Web.
From the Printer Control Panel
1 Press the < > key with [PORT SETTING]
displayed.
2 Select [PRINT CONFIG] with the < > key,
and then press the < > key.
3 Press the <Set> key when [SET: to Print.] is
displayed.
The list of settings will be printed.
From Print Services on Web

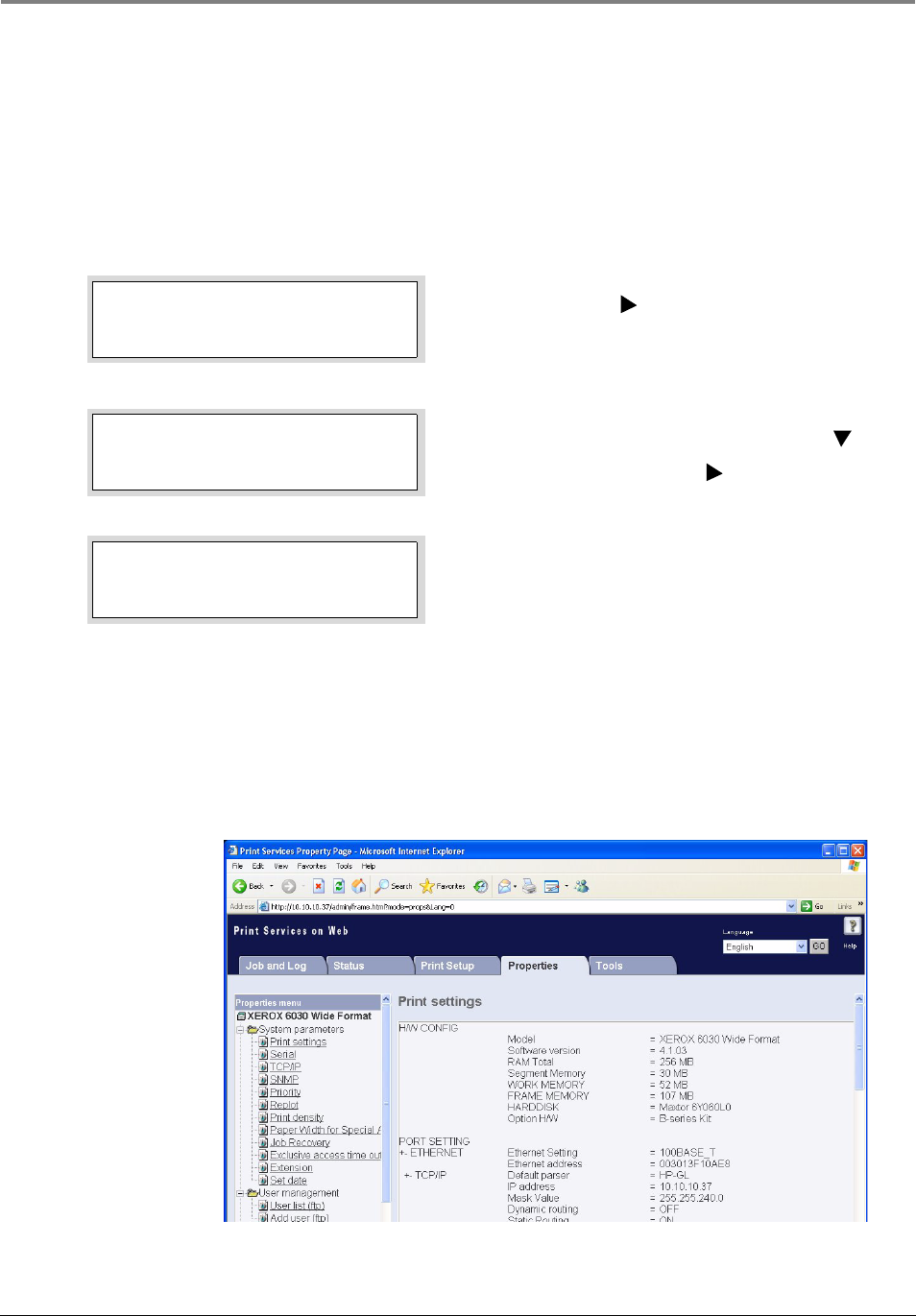

1 Start Print Services on Web, log in as Administrator, and select the
[Properties] tab.
MENU
PORT SETTING
PORT SETTING
PRINT CONFIG
PRINT CONFIG
SET: to Print.
