User's Manual

X5669WUP3 User’s Manual Version 1.0
10
IX. Software Upgrade
You may easily upgrade X5668 embedded software by obtaining the
compressed upgrade kit from the service provider and then following the
steps for upgrading through a Web-browser:
Step 1: Extract the ZIP file for updated firmware.
Step 2: Connect X5668
via the local Ethernet port or remote ADSL link,
making sure that the X5668
Ethernet IP address and your
terminal are properly configured so that you can successfully
“ping” X5668. The default local IP address is “192.168.1.1”.
Step 3: Launch the Web browser (IE or Netscape), and enter the default
IP address 192.168.1.1 into the address bar to access the Web
management page.

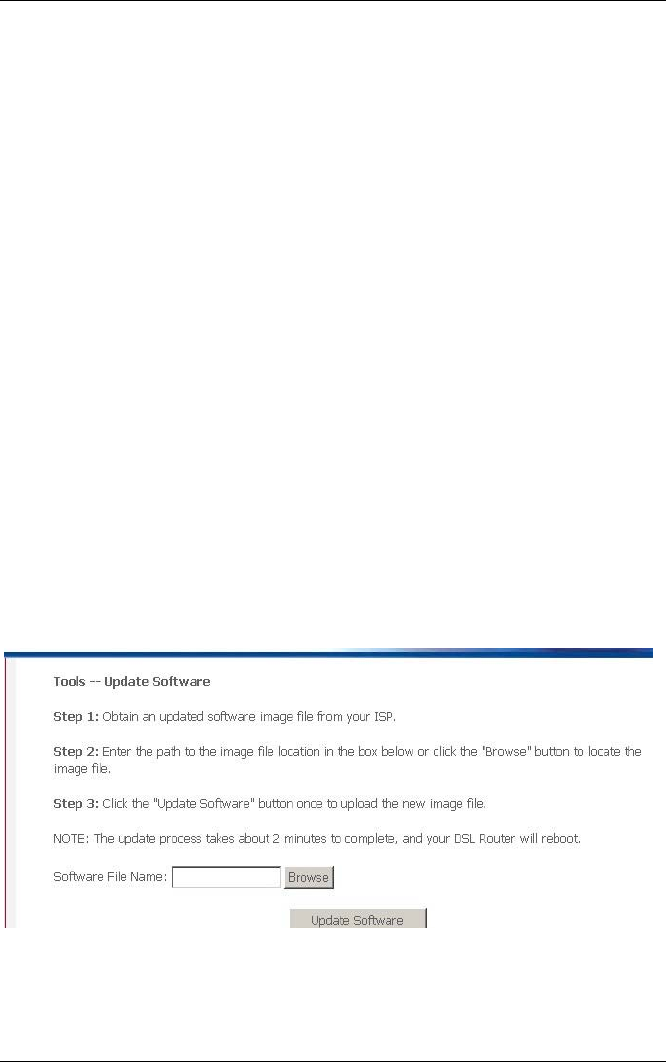

Step 4: Click on the Management link on the navigation bar and then on
the Update Software link below it.
Step 5: Click on the Browse to select the appropriate firmware and then
click on the Update Software button. The upgrade process
may take about 60 seconds. Do not reset the device while
