User's Manual

X5669WUP3 User’s Manual Version 1.0

V. Appearance

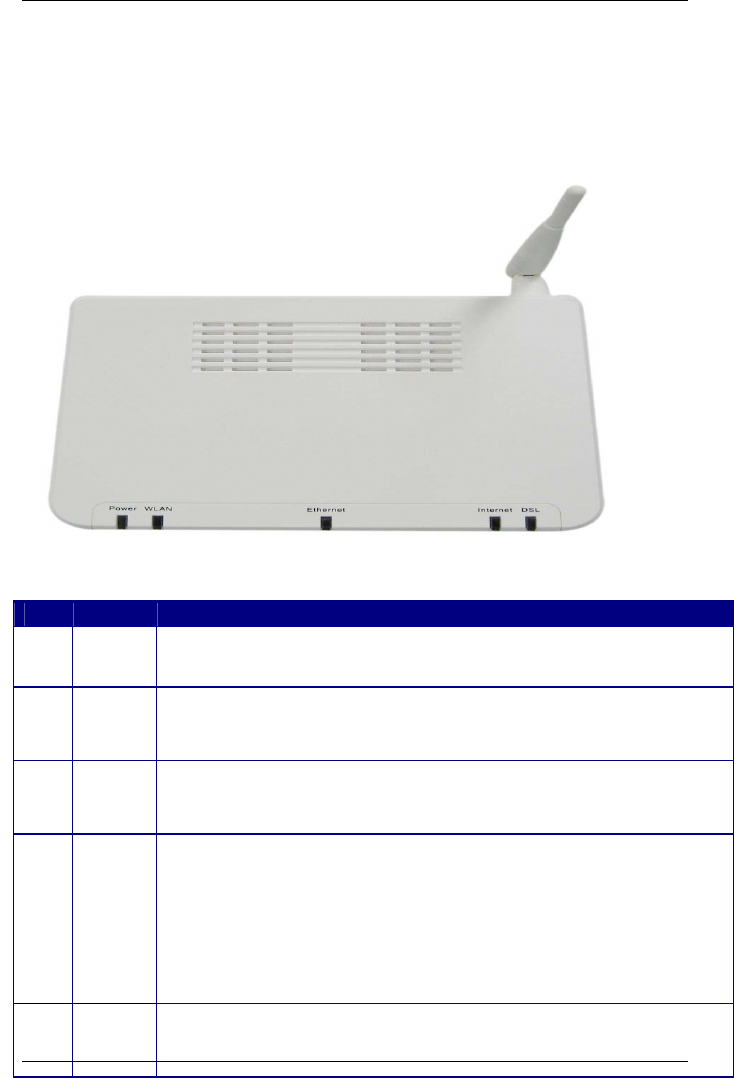

Front Panel

Label Description

1 Power

GREEN off: No power or user forgets to plug power adapter

GREEN on: Power on then GREEN lights on

RED on: test fail RED lights on

2 WLAN

GREEN off: WLAN disable

GREEN on: WLAN enable and stand by

GREEN blinking: packets transmitted through

Ethernet

GREEN off: No ethernet connected on LAN side

GREEN on: 4 ethernet ports, any port connected

GREEN blinking: packets transmitted through

Internet

GREEN off: No connection to Internet

GREEN on: No bridge mode and router mode successes to get IP, then

GREEN ON

GREEM blinking: Any mode when packets transmitted then GREEN LED

blinking.

RED on: router mode connection failed to get IP or box is set to be

bridge mode then RED lights on

5 DSL

GREEN on: phsical layer sync successes

GREEN blinking: sync progress

GREEN off: cable not connected or no sync

1 2 3 4 5










