Operation
40 975-0210-01-01
Charger Fault
The “Charger Fault” System Status message appears when an
internal error is detected in the inverter/charger during
charging. In addition, the red Error LED is on and the buzzer
sounds. After 15 minutes, the charge relay disconnects and
the inverter section shuts down. The screen shows “System
Status: Overload.”
This fault indicates a hardware failure in the charger circuitry
of the inverter/charger. If this message appears, contact
Xantrex or the nearest Service Center.

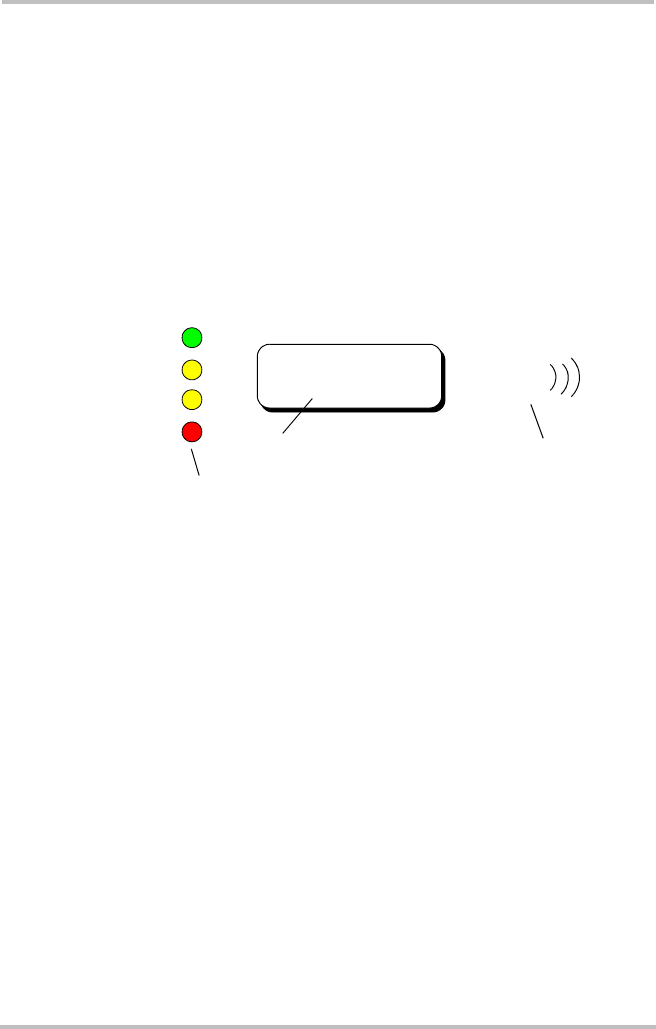

Figure 4-17
Charger Fault Error Message
Inverter
Charge
Batt. Full
Error
822-4A-001
System Status:
Charger Fault
!
Error LED ON
Buzzer sounds
(press arrow
button to cancel)
Error Condition
