High Battery Voltage
The “Hibat/Stop Chrg” System Status message appears when
the battery voltage rises above 15.7 V. This condition usually
occurs only when a charging source other than the RV Series
Inverter/Charger is used to charge the battery bank. Switch
off any charging sources other than the RV Series Inverter/
Charger to allow the voltage level to drop. The inverter
automatically resets and resumes operation when the battery
voltage falls below 15.4 V.
Low Battery Voltage
The “Lobat/Start Chrg” System Status message appears when
the battery voltage drops below 10.5 volts. The red Error
LED illuminates and the buzzer sounds. The inverter shuts
off to prevent damage to the batteries. Provide an AC supply
(such as shore power or a generator) to the inverter/charger to
automatically start charging the batteries.

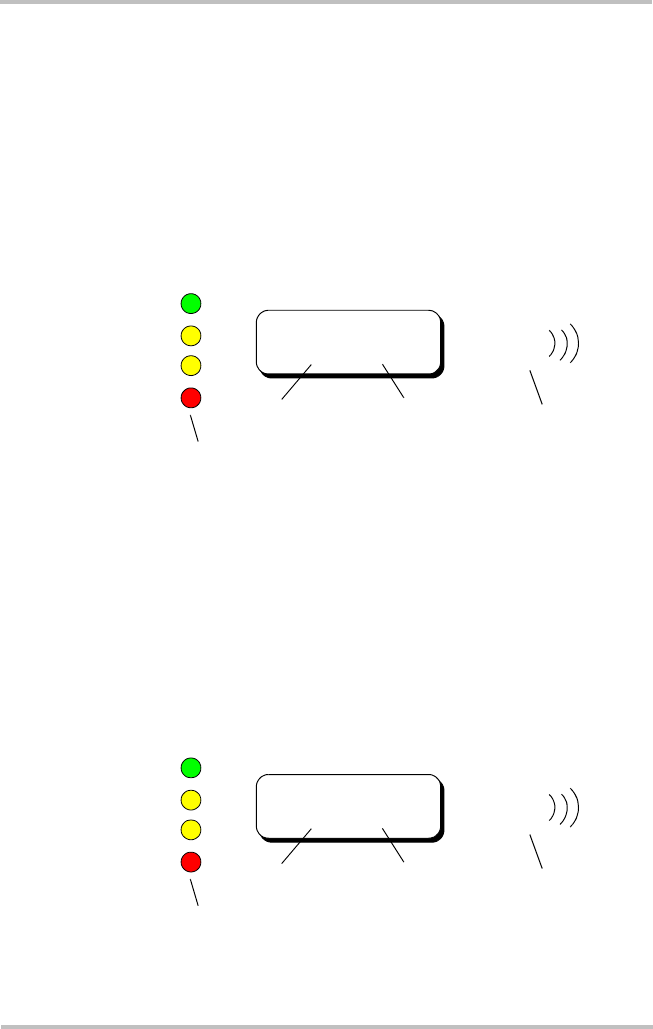

Figure 4-15
High Battery Voltage Error Message
Figure 4-16
Low Battery Voltage Error Message
Inverter
Charge
Batt. Full
Error
822-4A-001
System Status:
Hibat/Stop Chrg
!
Error LED ON
Buzzer sounds
(press arrow
button to cancel)
Error Condition
Remedy
Inverter
Charge
Batt. Full
Error
822-4A-001
System Status:
Lobat/Start Chrg
!
Error LED ON
Buzzer sounds
(press arrow
button to cancel)
Error Condition
Remedy
