Features
975-0210-01-01 3
Connection cable requirements
The RC7 and RC/GS use a telephone-style cord to connect to
the RV Series Inverter/Charger (models RV2012GS,
RV2012GS-15/20B, RV2012GS-20B, RV2512GS, and
RV3012GS).
Use only Xantrex-recommended accessories:
To connect the RC/GS or RC7 to a non-GS series RV Series
Inverter/Charger, use a data-standard RJ11 cable. This cable
is sold separately in 25-foot (order #392-9) or 50-foot (order
#392-5) lengths.
Part number Cable Length
31-6257-00 25 feet
31-6262-00 50 feet
31-6275-00 70 feet
Note: The RC/GS functions with non-GS series inverter/
chargers. However, not all the generator start features of the RC/
GS are compatible with non-GS series inverter/chargers.

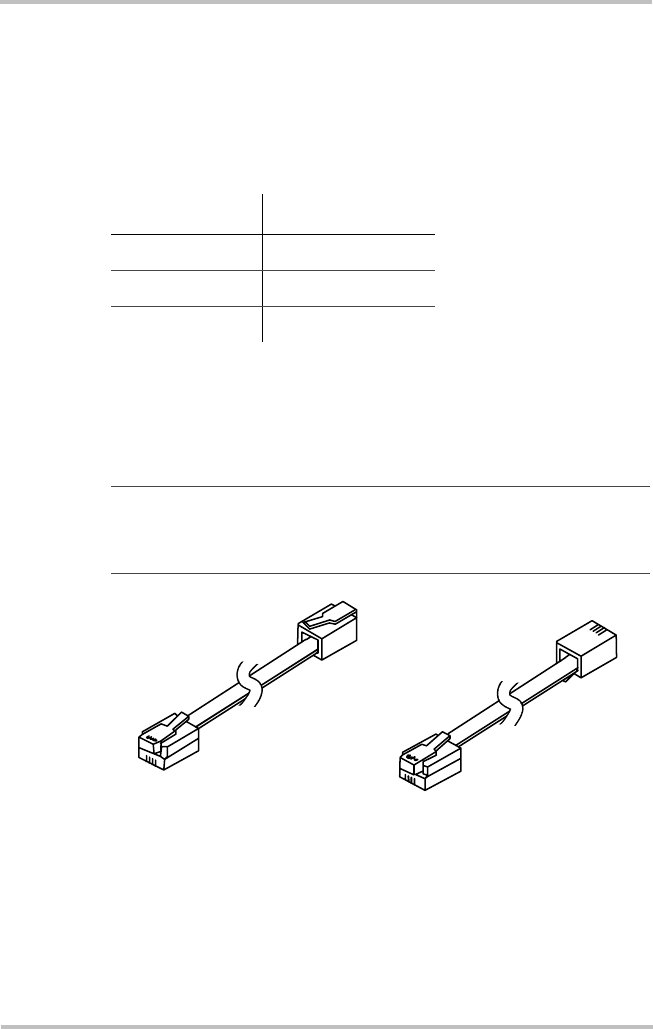

Figure 1-2
Remote Control Cable Types
Telephone-style cable
Data standard cable
