RV Series Remote Control Owner's Manual RC/GS RC7
Table Of Contents
- Important Safety Instructions
- Introduction
- Installation
- Configuration
- Set Idle
- Battery Capacity
- Battery Type
- Max Charge Rate
- Set Shore Power
- Remote Setup
- LCD Contrast
- Set Clock (RC/GS Only)
- Select Genset (RC/GS Only)
- Generator Start (RC/GS Only)
- Generator Stop (RC/GS Only)
- Thermostat Start Enable and Disable (RC/GS Only)
- Begin Gen Quiet and End Gen Quiet (RC/GS Only)
- Saving Setup Choices
- RV Series Inverter/Charger and RC/GS and RC7 Setup
- Auto Gen Start Setup (RC/GS Only)
- Operation
- Status LEDs
- LCD Screen
- Buttons
- AC Source Messages
- Genset Error Messages (RC/GS Only)
- Inverter Mode Messages
- Charger Mode Messages
- Inverter/Charger Error Messages
- Meters Display
- System Status Messages
- Preparation for Storage
- System Status Messages
- Generator Status Messages (RC/GS Only)
- System Status Display
- Meters Display
Introduction
2 975-0210-01-01
Features
The RC/GS and RC7 are control panels that allow remote
operation of a RV Series Inverter/Charger.
Features of the RC/GS and RC7 include:
• Simple menu-driven programming for full control of all
inverter/charger functions
• A three-level menu to prevent accidental setting changes
• Meters to display voltage and current
• An intelligent battery fuel gauge displaying estimated
battery capacity
• Error message and information displays used to optimize
system performance
• Remote ON/OFF inverter operation.
• RJ11 phone jack connection to inverter/charger.

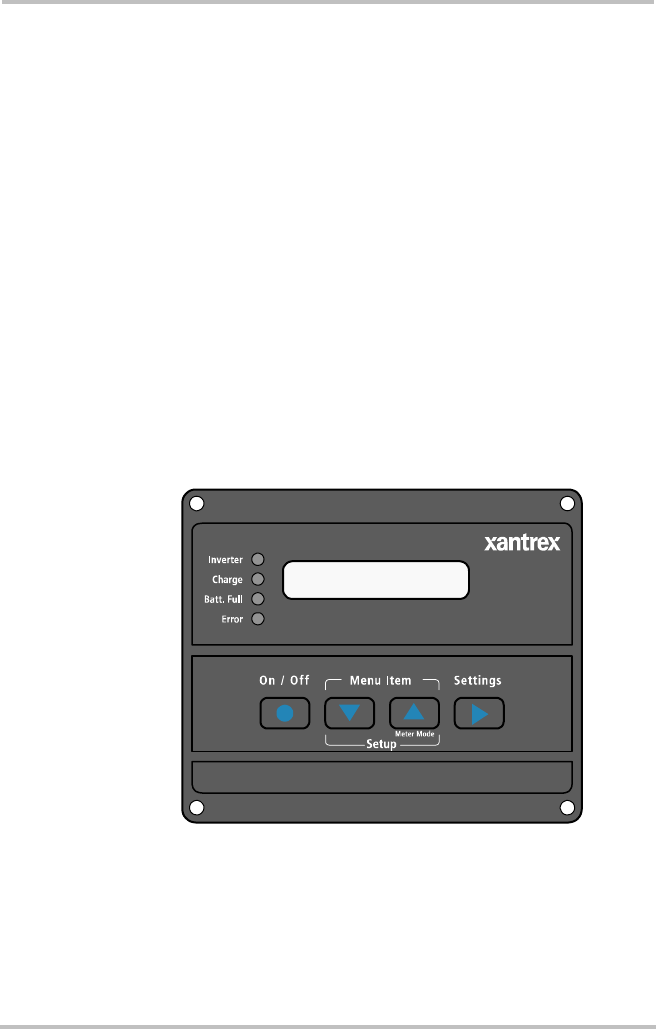

Figure 1-1
RC/GS Front Panel
RC/GS Remote Control/Gen Starting
