Inverter Owner's Guide 1000

DC Panel
975-0127-01-01 2–3
DC Panel

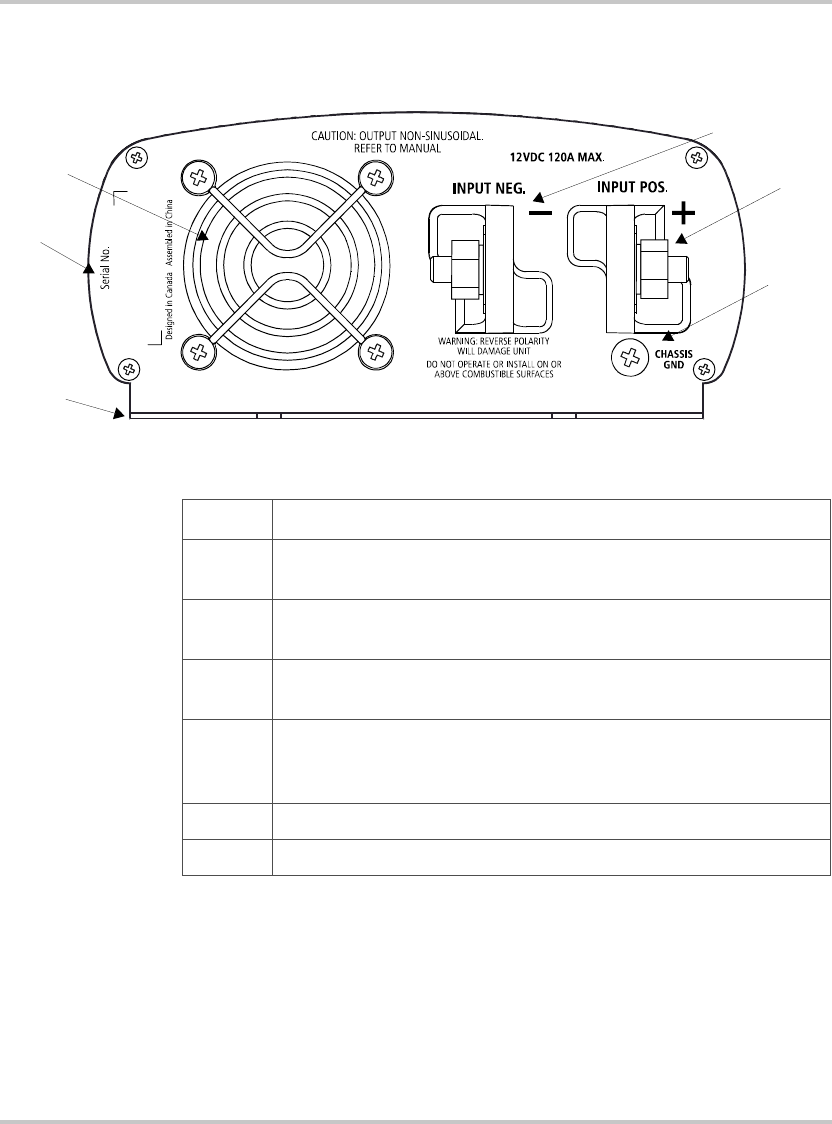

Figure 2-2 DC Panel
Feature Description
1 Chassis Ground Screw connects to vehicle chassis, DC grounding
bus or to engine’s negative bus.
2 Positive DC Cabling Terminal always connects to the cable
connected to the positive terminal of the battery.
3 Negative DC Cabling Terminal always connects to the cable
connected to the negative terminal of the battery.
4 Ventilation Opening must not be obstructed for the proper
operation of the inverter. When the inverter is mounted, the
ventilation opening must not point up or down.
5 Serial number of your unit
6 Mounting Flange allows you to mount the inverter permanently.
4
1
2
3
5
6
