3.2.2 Toolbar
The toolbar appears on the right on the display and displays the
functions available using symbols. A cursor (black frame surrounding
the symbol) can be moved through the toolbar using the <UP> and
<DOWN> buttons
(see section 3).
The function designated by the cursor is executed by pressing the
<ENTER> button. In normal operating mode the cursor fades out after
approximately 5 seconds, so that no undesired function is executed by
the user mistakenly pressing the <ENTER> button. To re-display the
cursor simply tap the <UP> or <DOWN> button.

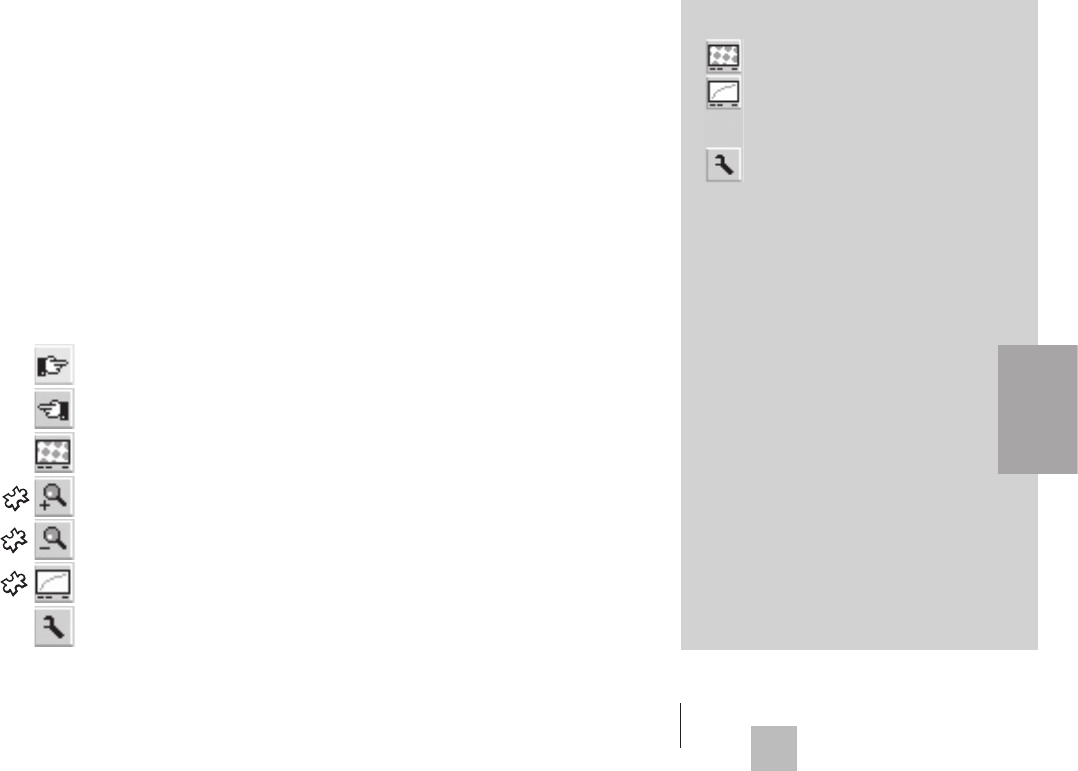

3.2.3 Meaning of the symbols
3.2.3.1 Change display mode
3
Next display
Previous display
Change to image display for a visual dot inspection
Increase representation resolution (1,2700 ppi)
Reduce representation resolution (6,350 ppi)
Display characteristic dot curve
Display settings
