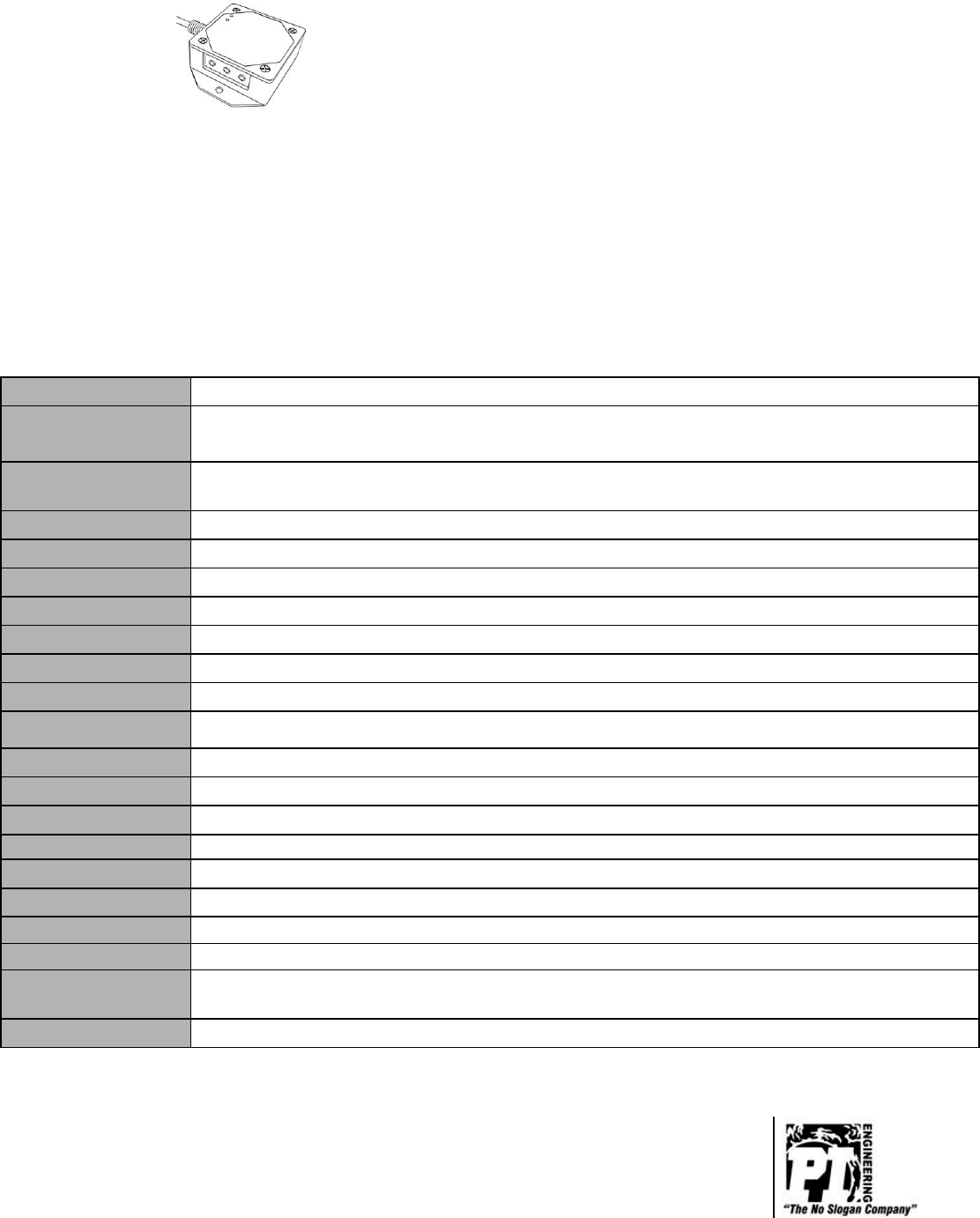

X-keys
®
USB 12 Switch Interface Specifications
for part # XK-1202-UHS12-R
 6-12 programmable switch ports
 Accepts standard 3.5mm stereo or mono plug
 Emulates keyboard, mouse, or game controller
 Android compatible
 Free programming software for Windows and Mac
 Free software development kits for developers
The X-keys USB 12 Switch Interface features six stereo ports which can be split to accommodate up to twelve
switches. A built in mounting flange accepts screws or cable ties to secure the switch interface in position. The
twelve short-to-ground ports allow an extremely long distance between the switch and port.
MacroWorks 3 software for Windows and ControllerMate software for Mac OS-X combine ease of programming
with a wide and flexible range of options. P.I. Engineering’s free SDKs offer direct communication for the
software developer and our new reflector feature sends messages to even the most reluctant software. The
USB 12 Switch Interface may also be configured as a standalone USB keyboard or compound HID device with
macros programmed in onboard non-volatile memory.
Specifications
Operating System
Use: Any OS via USB HID | Programming: Windows XP through 10, Mac OS X 10.4 through 10.10
Free Programming
Software
Windows: MacroWorks 3.1
Mac: ControllerMate for X-keys
Free Software
Development Kits
Windows (C++, C#, VB.NET) | Linux (C++) | Android (Java) | Raw HID (any language/OS)
Emulation Modes
HID keyboard, HID mouse, HID game controller
Port Type
3.5mm stereo (accepts 3.5mm mono or stereo plug)
Number of Ports
6 ports (split to 12 with optional Y cords)
Optional Accessories
Wired switches, Y cords, extension cords, or USB Extender. (see our website)
Connector
Wired USB 2.0 standard “A” plug
Cord Length
92” (2.3 m)
Wiring Distance
Up to 1,000 feet (300m) from switch to port
Dimensions
2.55” x 2.55” x 1.01” (65mm x 65mm x 26mm)
Mounting
Two 0.19” DIA mounting holes, 3” O.C. (4.8mm DIA, 76mm O.C.)
Weight
6 oz. (160 g)
USB type
USB 1.1 (compatible through 3.0)
Power Source
USB port, nominal voltage = 5 VDC
Power Consumption
21 mA @ 5 VDC
Temperature Range
-20 to 60 C
Memory Capacity
Approximately 1200 keystrokes or commands
Memory Type
EEPROM, non volatile memory (X-keys retains memory for over 200 years)
Environmental
Rating
IP 40, typical indoor office environment
Certifications
FCC class B, CE, RoHS, WEEE compliant
Specifications subject to change without notice
