Concrete Vibrator, Backpack Model WBP50
Page 22 March 2014

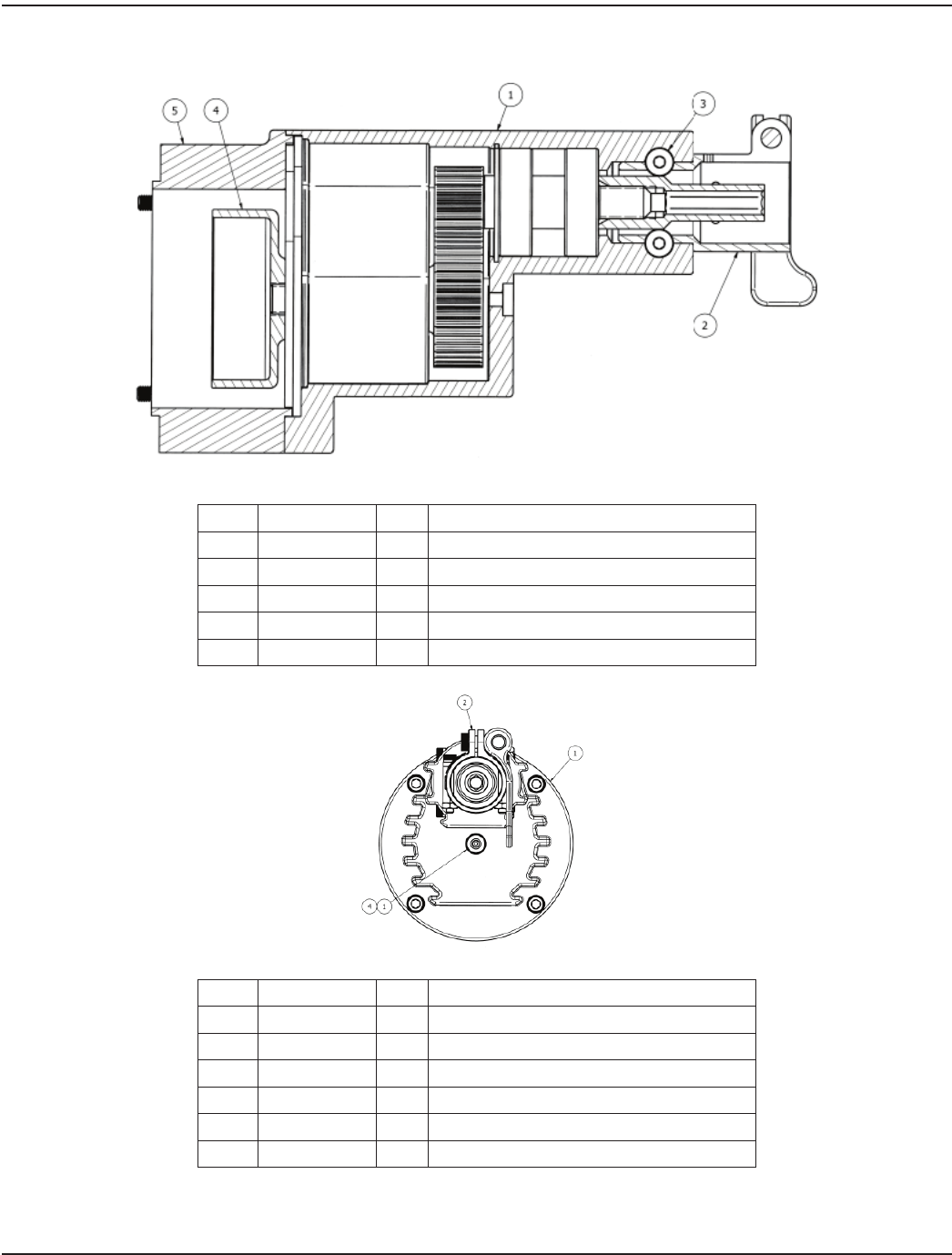

W402600 Speed Increaser Assembly, 4 of 4
Item Part Number Qty Description
1 W402601 1 Housing, speed increaser; machined
2 W402607 1 Coupling; quick disconnect; backpack
3 W402625 2 Shoulder screw; hex head self-locking; 1/4"-20
4 W402187 1 Drum, clutch; backpack; Honda; Noram
5 W402612 1 Bracket; motor mounts; speed increaser
Item Part Number Qty Description
1 W402601 1 Housing, speed increaser; machined
2 W402607 1 Coupling; quick disconnect; backpack
3 W402152 2 Screw, button head cap; 1/4"--28 x 0.25
4 W402153 1 Washer, nylon
4 W402187 1 Drum, clutch; backpack; Honda; Noram
5 W402612 1 Bracket; motor mounts; speed increaser
