User Manual
Page 21 March 2014

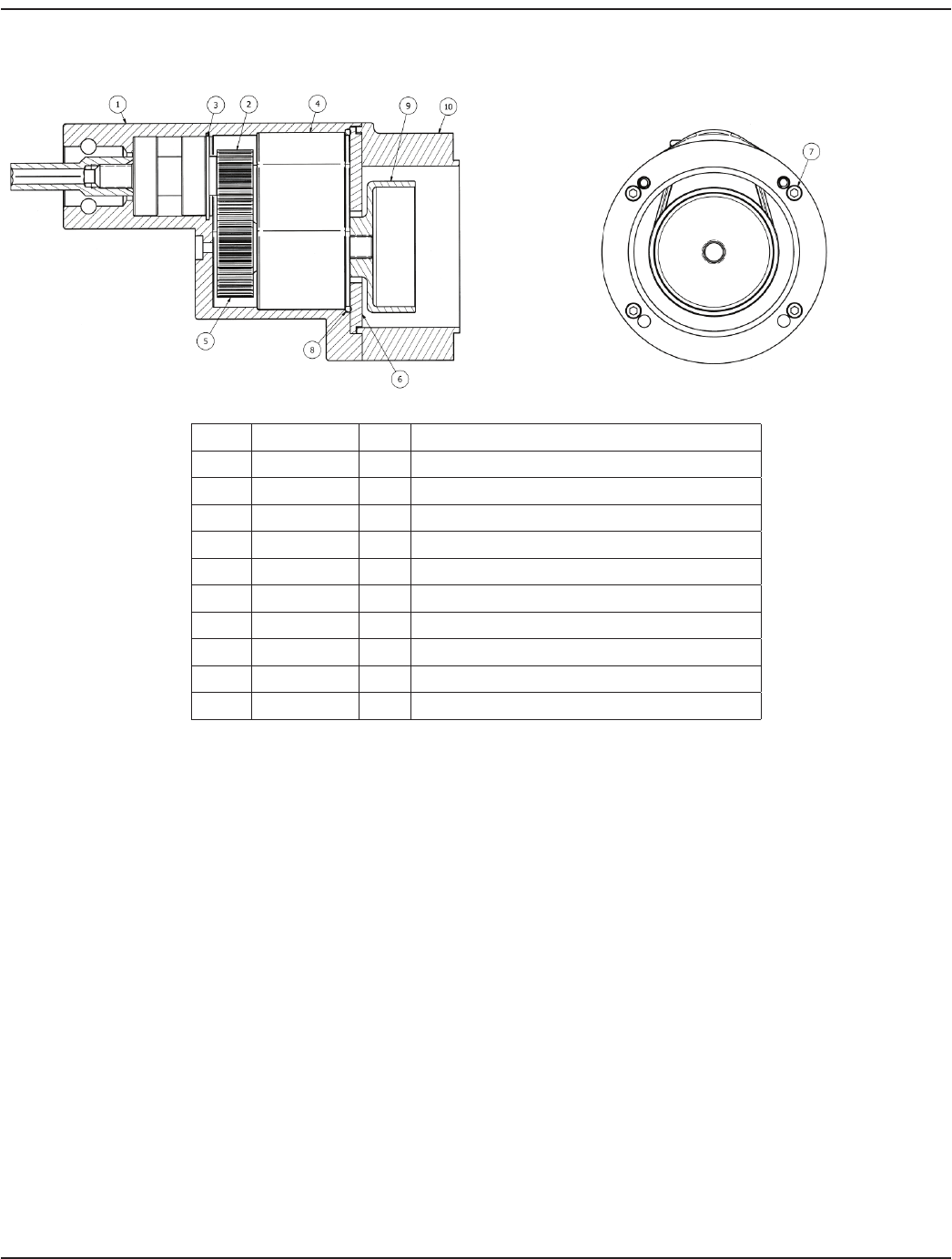

W402600 Speed Increaser Assembly, 3 of 4
Item Part Number Qty Description
1 W402601 1 Housing, speed increaser, machined
2 W402620 1 Gear assembly, output, speed increaser
3 W402125 1 Ring, retaining, internal
4 W402602 1 Bearing, adapter, speed increaser
5 W402615 1 Gear assembly, input, speed increaser
6 W402610 1 Plate; bearing adapter retainer
7 W402628 4 Screw, socket head cap; #10-24 x 2-1/4" long; Z.P.
8 W402627 1 O-ring, seal, speed increaser
9 W402187 1 Drum, clutch; backpack; Honda; Noram
10 W402612 1 Bracket; motor mounts; speed increaser
