Concrete Vibrator, Backpack Model WBP50
Page 20 March 2014

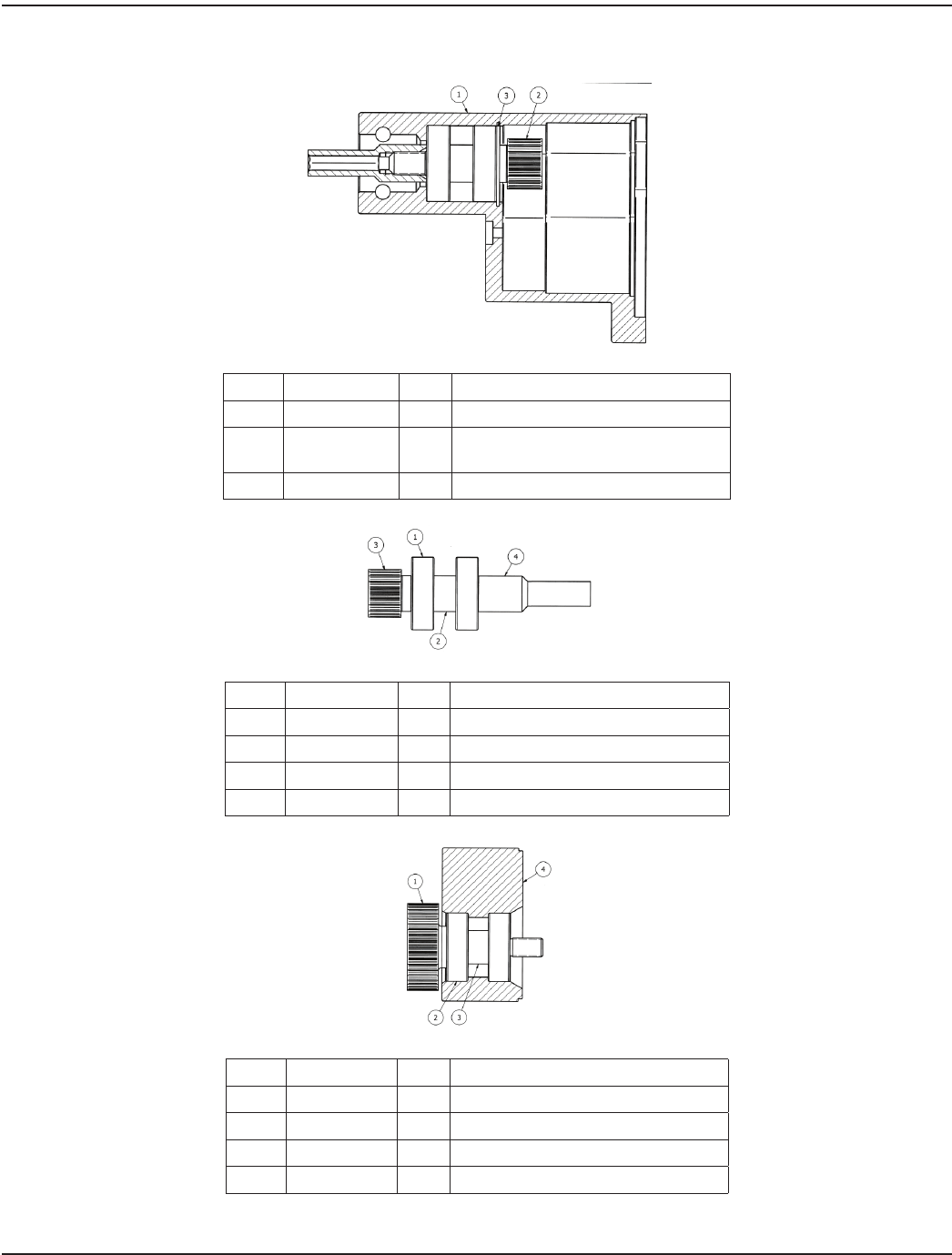

W402600 Speed Increaser Assembly, 2 of 4
Item Part Number Qty Description
1 W402601 1 Housing, speed increaser, machined
2 W402620 1
Gear assembly, output, speed
increaser
3 W402125 1 Ring, retaining; internal
Item Part Number Qty Description
1 W419661 2 Bearing, ball, deep groove
2 W402131 1 Spacer, bearing
3 W402619 1 Gear, output shaft, machined
4 W402189 1 Driver, hex; backpack; black oxide
Item Part Number Qty Description
1 W402614 1 Gear, input shaft, machined
2 W419661 2 Bearing, ball; deep groove
3 W402131 1 Spacer, bearing
4 W402602 1 Bearing adapter, speed increaser
