Concrete Vibrator, Backpack Model WBP50
Page 18 March 2014

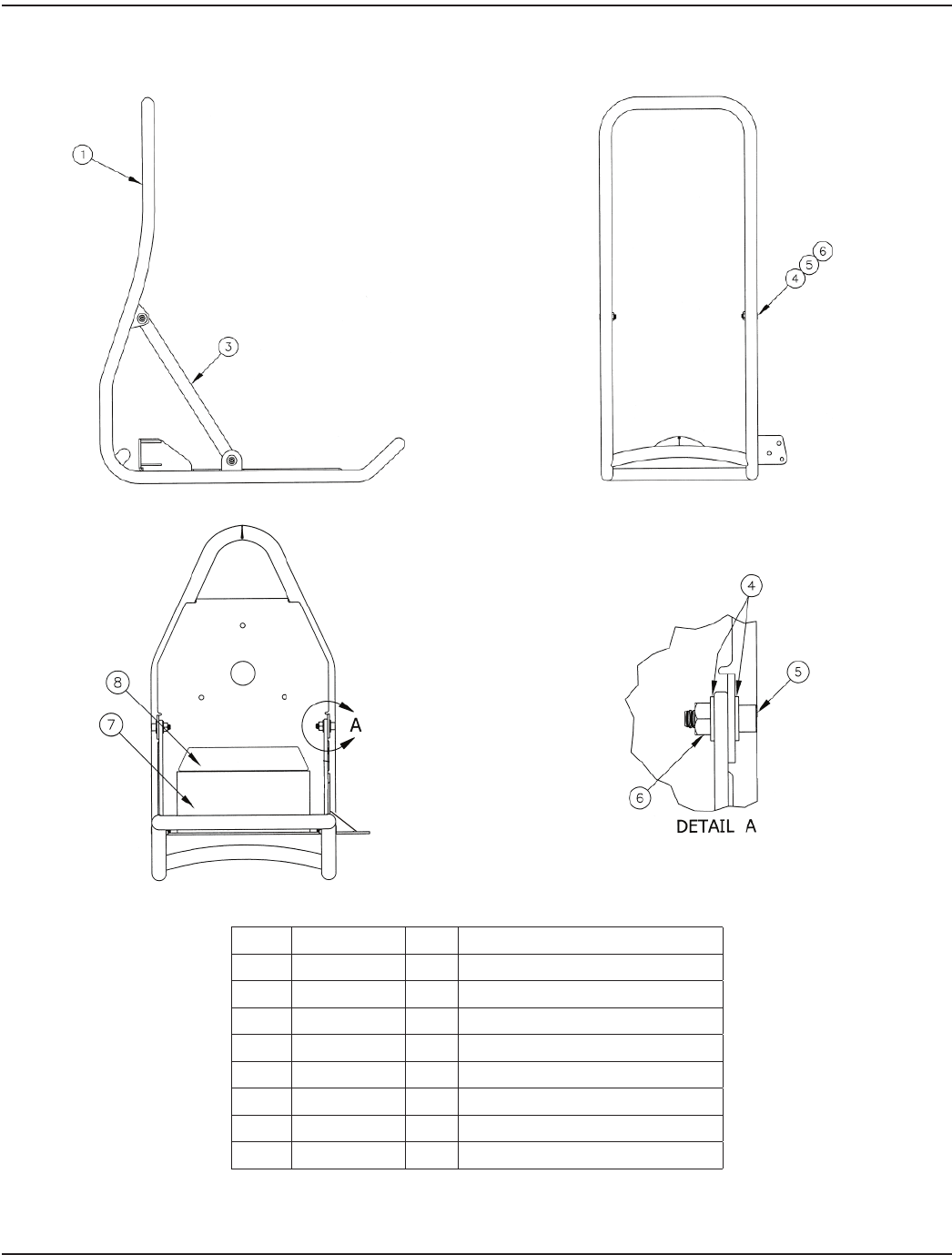

W402530 Frame Assembly
Item Part Number Qty Description
1 W402513 1 Frame, weldment; backpack; Honda
2 W402302 1 Backpack frame Deuter (not shown)
3 W402532 2 Brace; frame; backpack
4 W402527 8 Washer, flat, zinc plated, 1/4"
5 W402528 4 Screw, socket head, Nyloc, 1/4-20
6 W402529 4 Nut, zinc plated, 1/4-20
7 W402150 1 Decal, caution, backpack engine
8 W402184 1 Backpack, Ergopack
