Locking
Lever

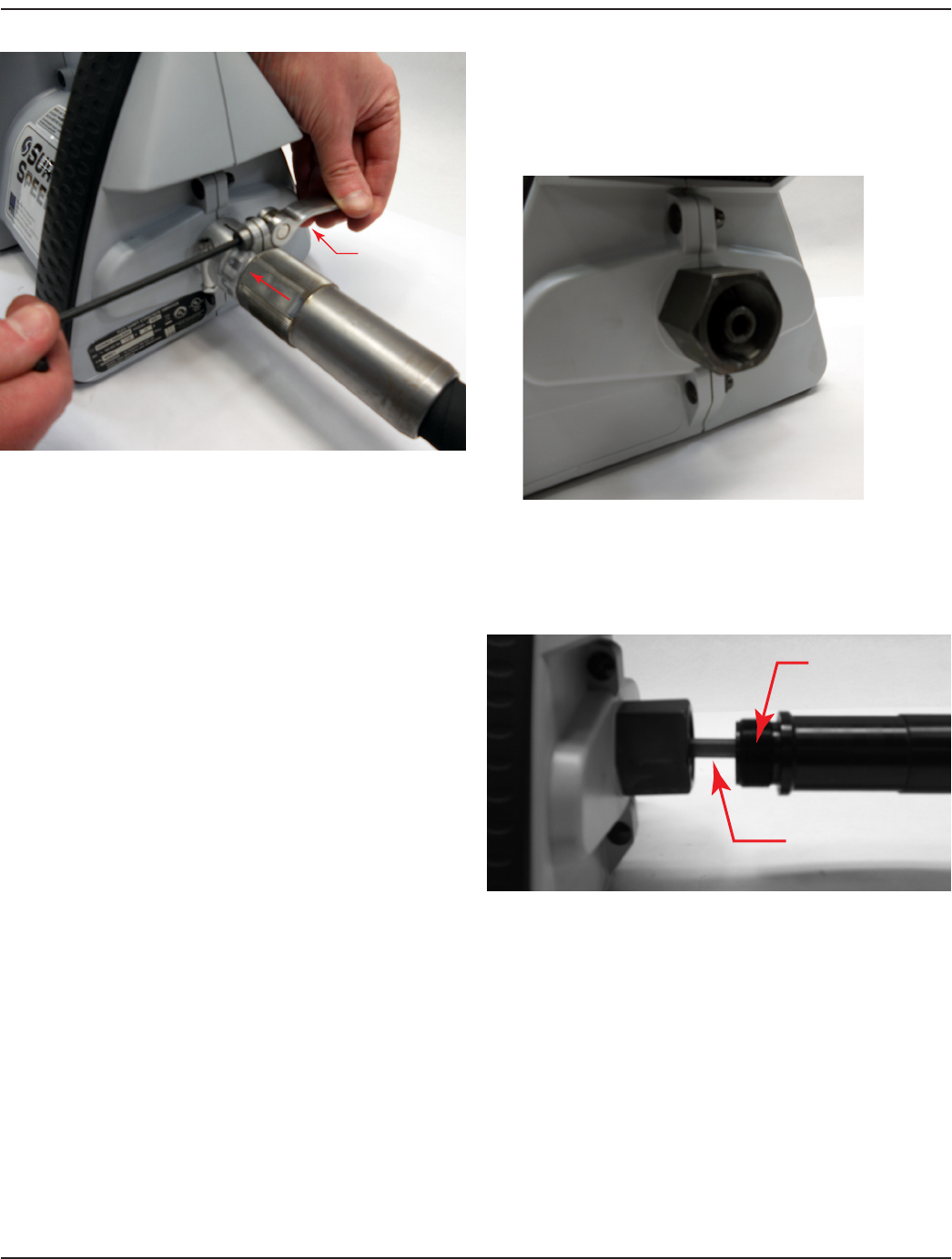

Figure 7: Locking lever adjustment
Disconnecting the Vibrator Casing
(Quick-Disconnect)
1. Be sure the quick-disconnect locking lever on the motor
is in the up position.
2. Rotate the core and casing counterclockwise from the
lock position to the unlock position.
3. Pull the casing end straight out of the quick-disconnect
connector on the motor.
4. Be sure that the locking lever is in the down position
when storing the motor to avoid damage to the lever.
Connecting the Vibrating Casing
(Threaded Connections)
OTE:N The casing must be fitted with a thread
connector end.
Figure 8: Threaded casing connector
1. Line up threads of the shaft with the threaded motor
connector. Hold the casing end rmly and rotate the
casing until it engages into the motor.
Shaft
Threads
Figure 9: Shaft insertion
2. Hold the casing assembly in one hand while carefully
rotating the motor counterclockwise until motor is snug
to the shaft. See Figure 10.
