Vibrator Head Models 750-FI, 750-GI, 750-LI and 750-MI
3 6
7
8 9
PERMATEX #2
LOCTITE 545
LOCTITE 545
LOCTITE 545
2
310 10
4
5
1

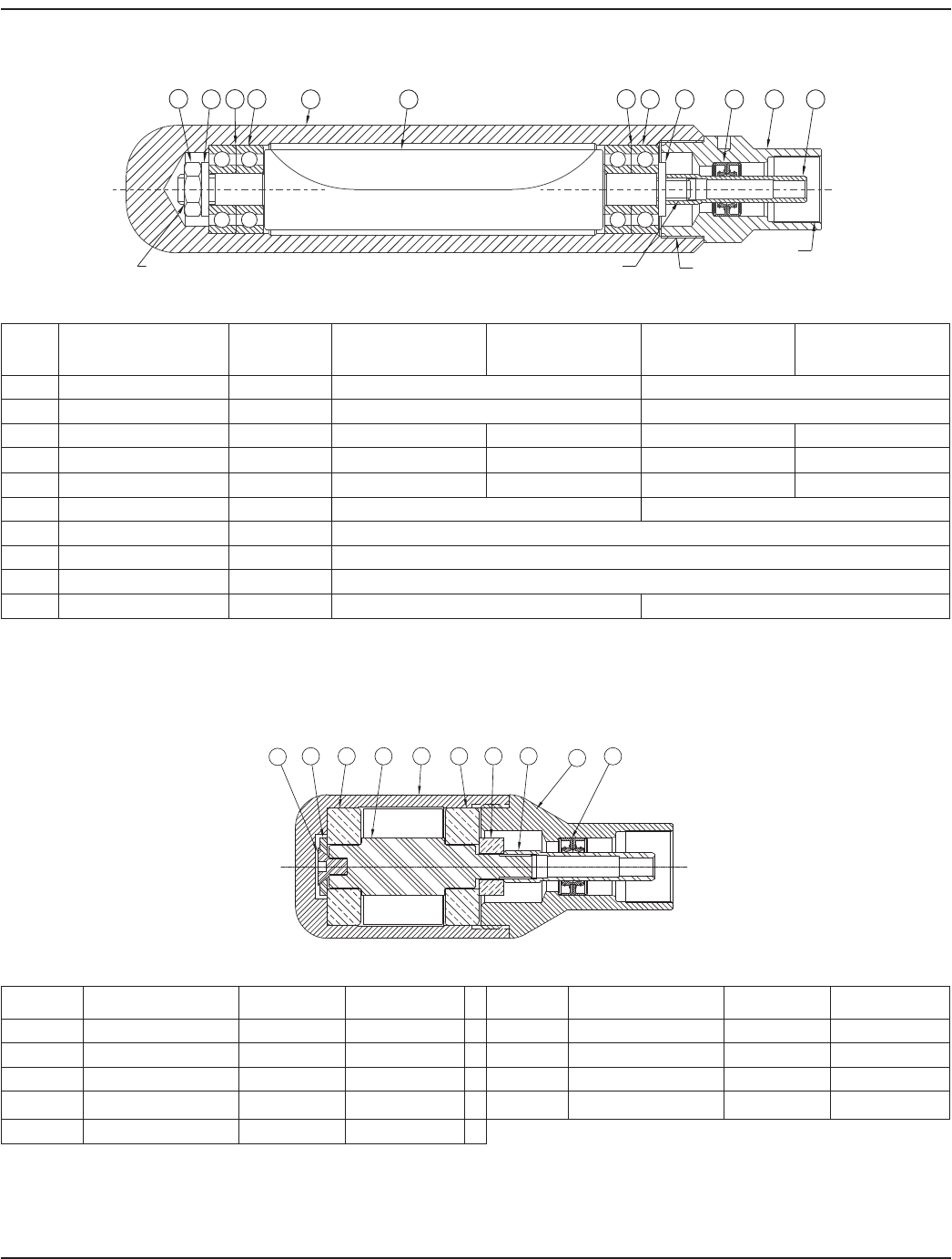

Figure 19: Model 750-FI, GI, LI and MI parts
Item Description Quantity
Part No. for
750-FI (1.38B)
Part No. for
750-GI (1.75B)
Part No. for
750-LI (2.00B)
Part No. for
750-MI (2.25B)
1 Nut, Hex Jam 1 W432708 W432707
2 Washer, Flat 1 W887015 W887011
3 Bearing, Ball 4 W096013 W096010 W096011 W096020
4 Housing, Square 1 W588331 W588339 W588354 W588368
5 Rotor 1 W718357 W718335 W717360 W718365
6 Washer, Flat 1 W887015 W887016
7 Seal, Oil 2
***
8 End Cap 1
***
9 Driver, Hex 1 W384446
10 Shim 2 W419701 N/A
***
Manufacturer suggests using end cap with pressed in seals: 1.38B - PN W208-231; 1.75B - PN W208-236; 2.00B - PN W208-261;
2.25B - PN W208-268. However, seal and end cap are available separately upon request.
Table 9: Models 750-FI, 750-GI, 750-LI and 750-MI parts list
Vibrator Head Model 750-SBI
1
2
3
4
5
6
7
8
9
3
Figure 20: Model 750-SBI parts
Item Description Quantity Part No. Item Description Quantity Part No.
1 Screw, Hex Socket 1 W437510 6 Washer, Spacer 1 W887018
2 Washer, Flat 1 W887017 7 Driver, Hex 1 W384446
3 Bearing, Ball 2 W099910 8 End Cap 1 W207268
4 Rotor 1 W717310 9 Seal, Oil 2 W747504
5 Housing 1 W587310
Table 10: Model 750-SBI parts list
