Instruction Manual

Flex Shaft Concrete Vibrator
Page 16 June 2014
Vibrator Head Model 750-D
5
3
4
1
2
2
6
8
9
7
LOCTITE 545
LOCTITE 545 PERMATEX #2

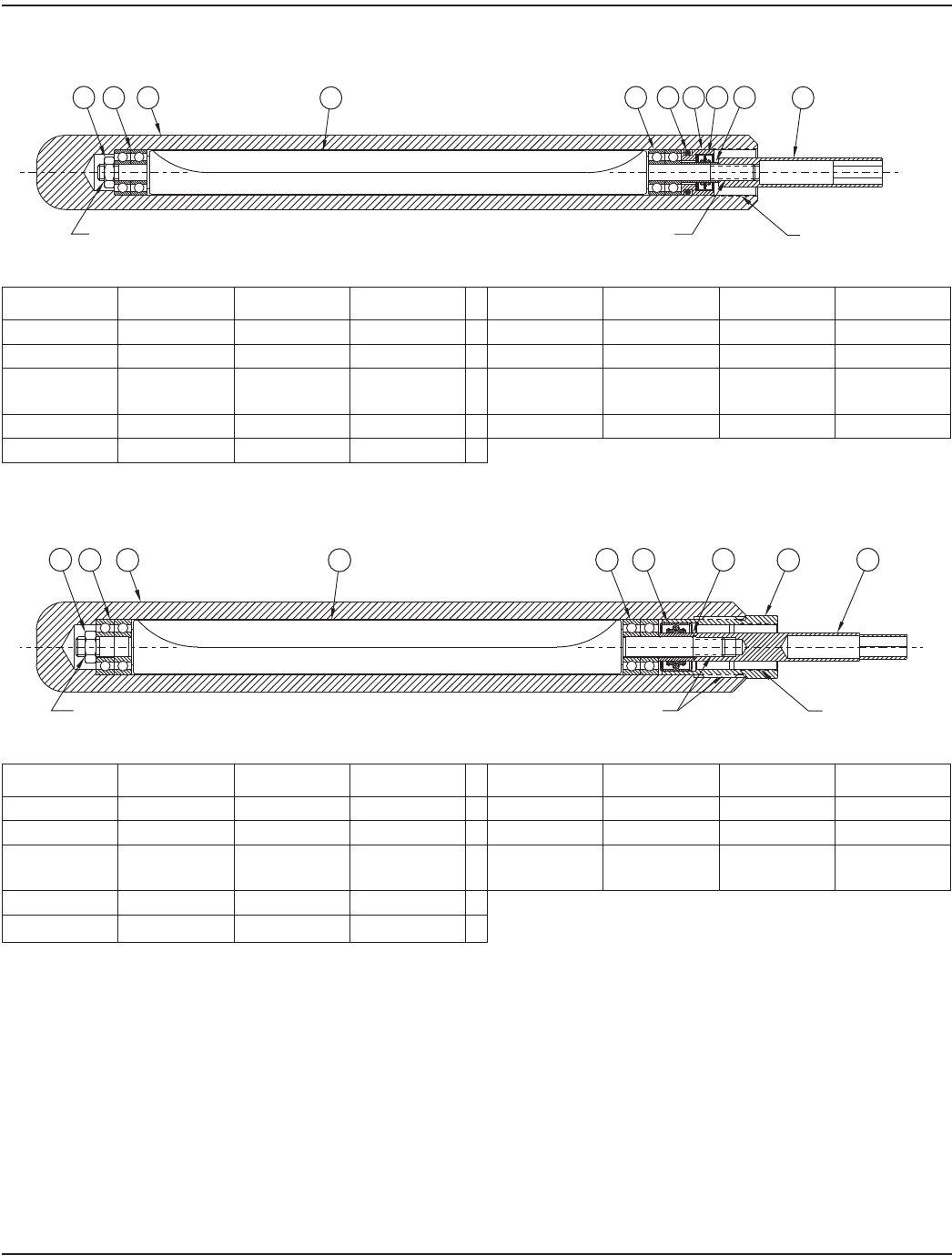

Figure 17: Model 750-D parts
Item Description Quantity Part No. Item Description
Quantity Part No.
1 Nut, Hex Jam 1 W435638 6 Holder, Seal 1
*
2 Bearing, Ball 4 W097011 7 Seal, Oil 2
*
3
Housing,
Square
1 W587320 8 Bushing
1
*
4 Rotor 1 W717340 9 Driver, Hex 1 W382428
5 O-Ring, Buna 1
*
* All of these items available assembled in a kit, PN W747-540.
Table 7: Model 750-D parts list
Vibrator Head Model 750-EH
5
3
4
1
2
2 6 8
7
LOCTITE 545 LOCTITE 545 PERMATEX #2
Figure 18: Model 750-EH parts
Item Description Quantity Part No. Item Description Quantity Part No.
1 Nut, Hex Jam 1 W432710 6 Bushing 1 W177325
2 Bearing, Ball 4 W097012 7 End Cap 1
**
3
Housing,
Square
1 W587325 8 Driver, Hex 1 W384447
4 Rotor 1 W717345
**
End cap assembly with seals is PN W207-248.
(Order bushing separately.)
5 Seal, Oil 2
**
Table 8: Model 750-EH parts list
