Flex Shaft Concrete Vibrator
Page 12 June 2014
PARTS
Item Description Quantity WVD1 WVG1 WSD1 WSG1 WSG2
1 D-Ring 2 W819014 W819014
2 Filter, Intake 1 W423132 W423132
3 Carriage Screw; 10-32, 3/4 in (19.05 mm) 9 W423140 W423140
4 Acorn Nut, Self-locking; 10-32 UNF 9 W423141 W423141
5 Assembly, Brush & Spring; 115 V AC 2 W423117
5 Assembly, Brush & Spring; 230 V AC 2 W423118
6 Brush Cap with O-Ring 2 W423114 W423114
7 Casing Connector
8 Variable Speed Switch
514-O Non-foaming Vibrator Oil 14 oz W655-143 W655-143
Strap, Carry (not shown) 1 W819013 W819013
514-B Shaft Lubricant 14 oz W655-140 W655-140
Permatex 11 oz W657055 W657055
See Figure 14 for parts locations
Table 3: Concrete vibrator replacement parts
1
2
7
4
3
5
6
5
6
8

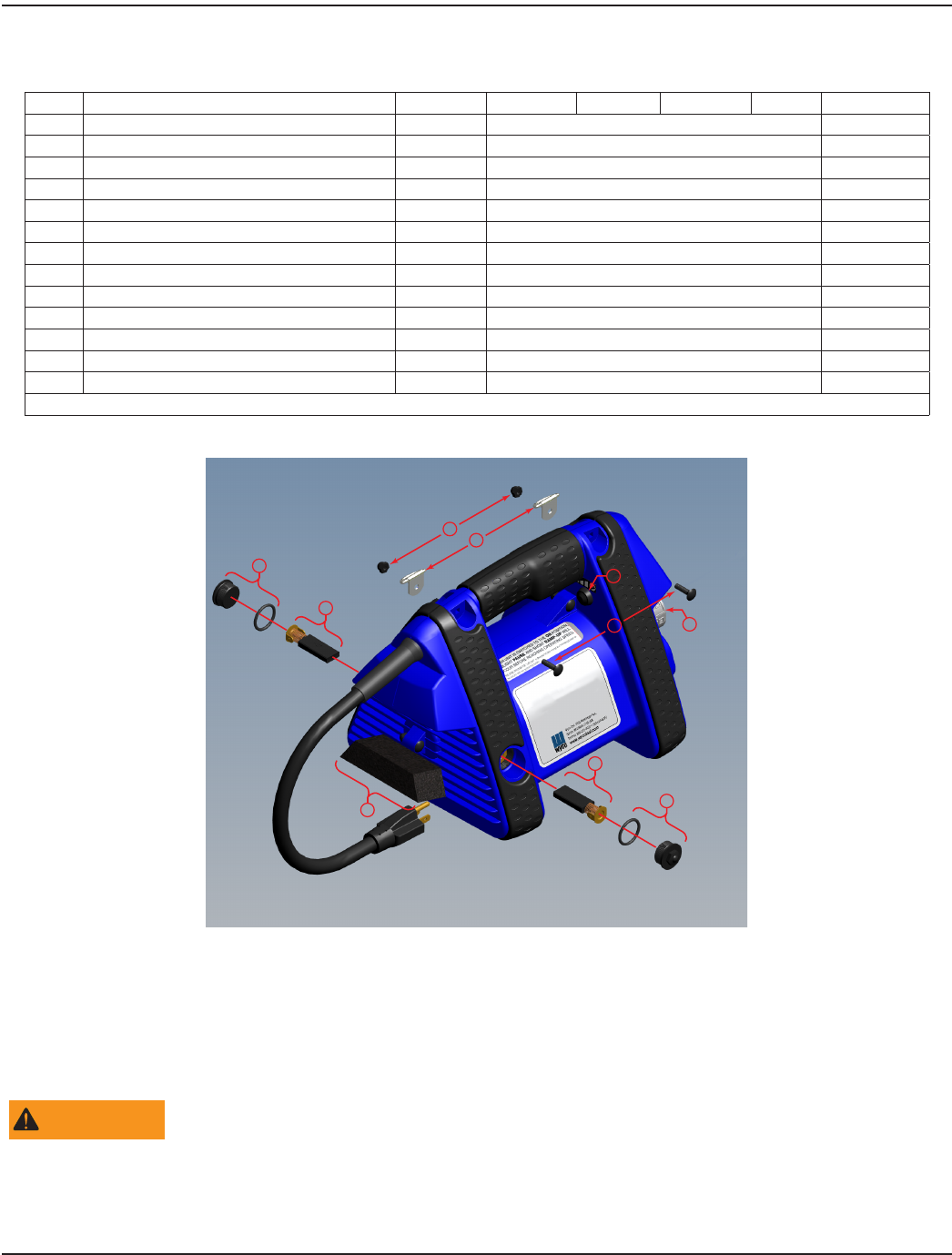

Figure 14: Parts locations
PREVENTIVE MAINTENANCE
Wyco vibrator motors are designed to operate 50…100 hours between normal preventive maintenance intervals. The service
instructions below should be followed to perform the preventive maintenance.
WARNING
THERE ARE NO USER SERVICEABLE PARTS CONTAINED WITHIN THE MOTOR HOUSING. OPENING THE MOTOR HOUSING
MAY BE DANGEROUS AND WILL VOID THE WARRANTY. ANY REPAIRS THAT REQUIRE OPENING THE MOTOR HOUSING
SHOULD BE PERFORMED AT AN AUTHORIZED WYCO SERVICE CENTER OR AT THE WYCO FACTORY. USE ONLY FACTORY
AUTHORIZED REPLACEMENTS PARTS.
