User Manual
Page 11 June 2014
1
2
4
5
3
5

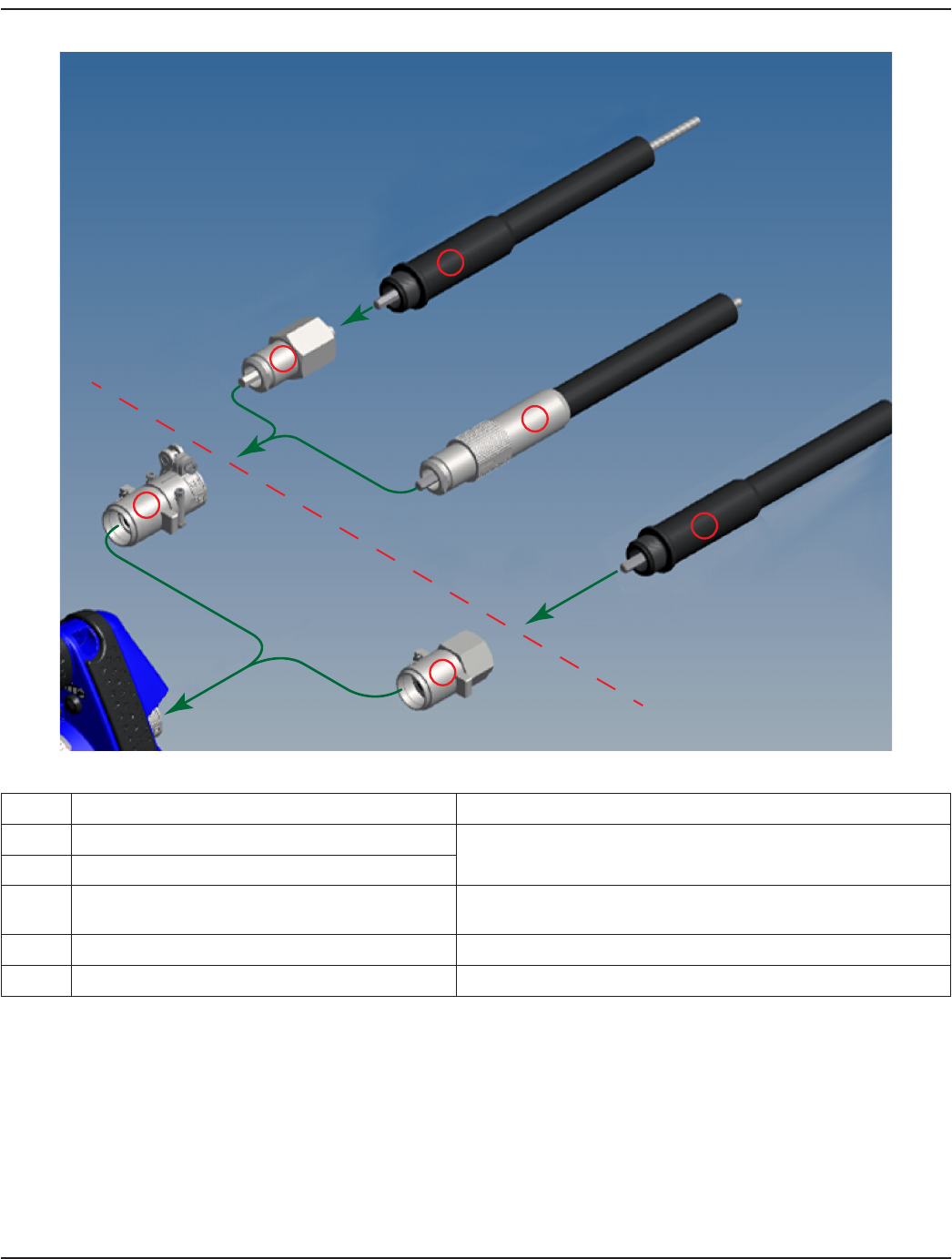

Figure 13: Core and casing configurations
Item Description Notes
1 Quick-Disconnect Motor End
These motor ends are part of the motor assembly. They are not
interchangeable and are part of the specific part number.
2 Threaded Motor End
3 Threaded to Quick-Disconnect Adapter
Wyco PN W423-500 allows threaded core and casings to be used
with quick-disconnect motor.
4 Quick-Disconnect Core and Casing
5 Threaded Core and Casing
Table 2: Core and casing options
