User's Manual

C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-39
Rev C Section 4 –Electrical Installation
May 2006
NOTE: FC-50 Connector J3 connects to AT-50/AT-51 antennas. These pins provide proprietary
channeling information to the antenna.
PIN SIGNAL NAME PIN SIGNAL NAME
A Proprietary F Proprietary
B Proprietary G Proprietary
C Proprietary H Proprietary
D Proprietary J Proprietary
E Proprietary K Proprietary

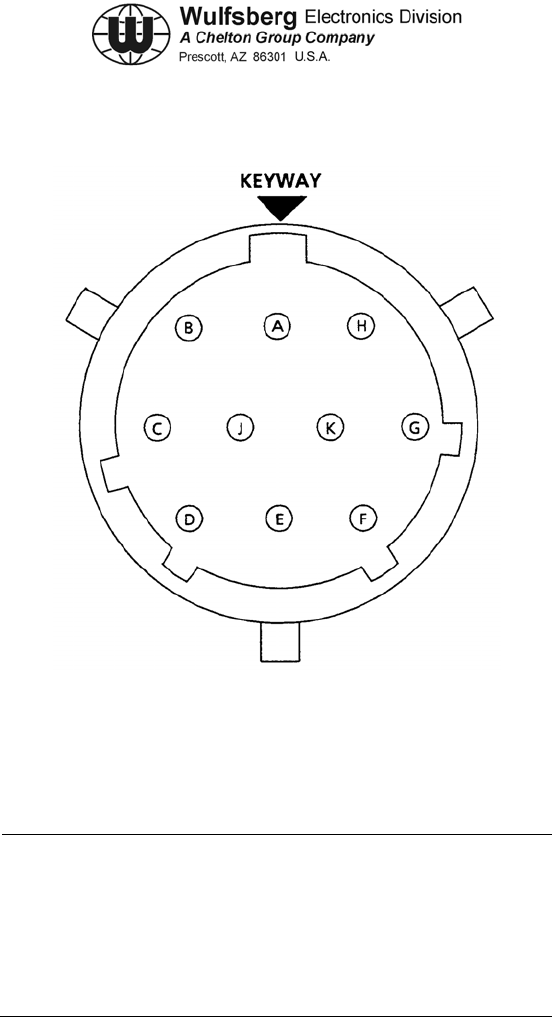

Figure 4-10. FC-50 / FC-550 / FC-5000 Connector J3
