User's Manual

C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-37
Rev C Section 4 –Electrical Installation
May 2006
PIN SIGNAL NAME PIN SIGNAL NAME
A RX DATA H L S0
B RX DATA L M GROUND
C TX DATA H N
D TX DATA L P GROUND
E GROUND R
F S S3
G T NC
H GROUND U NC
J NC V
K NC

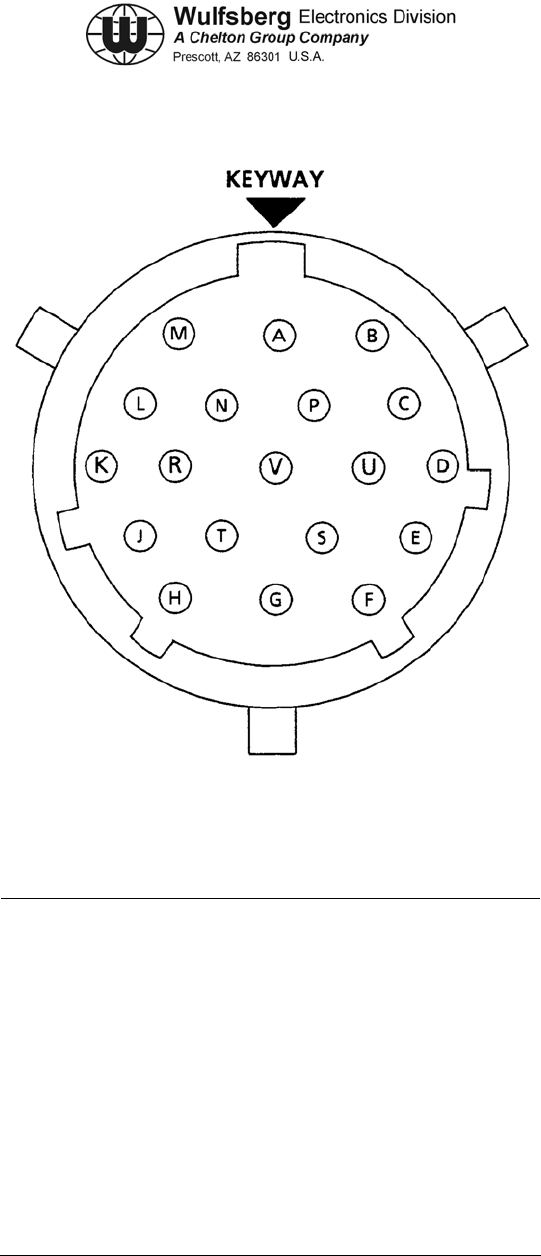

Figure 4-8. FC-50 / FC-550 / FC-5000 Connector J1
