User's Manual

C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page 4-23
Rev C Section 4 –Electrical Installation
May 2006
D. RT-5000 Transceiver Installation Wiring Considerations
(Digital Capable P/N’s 400-015525-0611 and above )
(1) J101 Connector

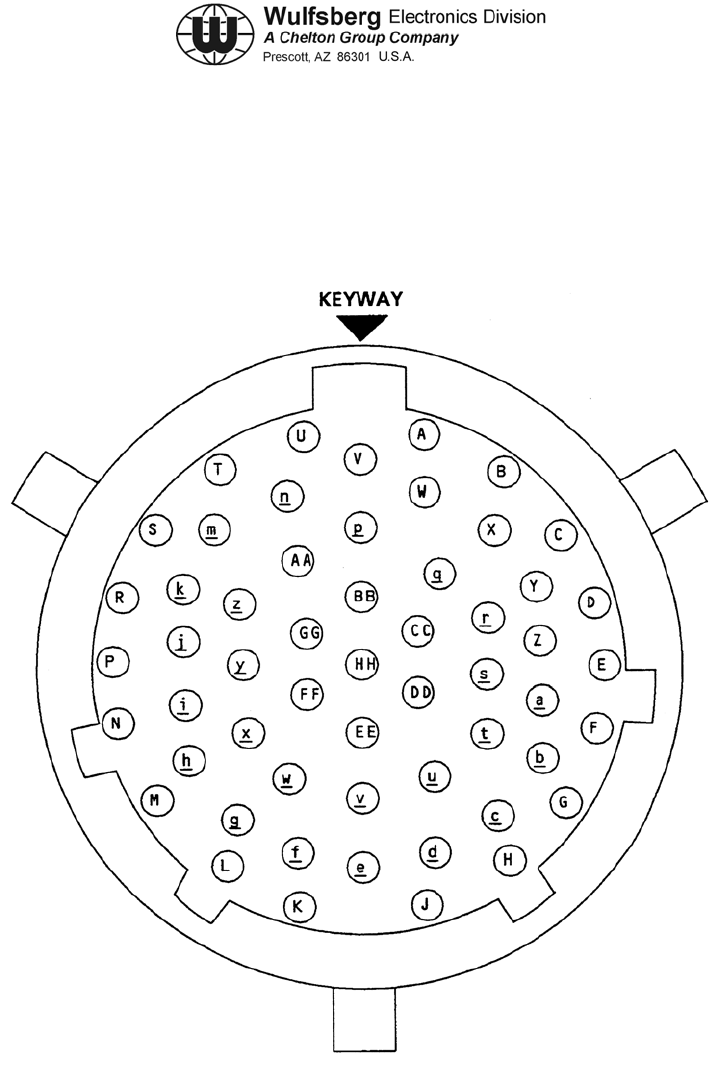

Figure 4-6 Connector J101
