Publication No. 150-041118 Page 4-17
Rev C Section 4 –Electrical Installation
May 2006
B. C-5000 Transceiver Interface to RT-5000 Transceiver Wiring Considerations

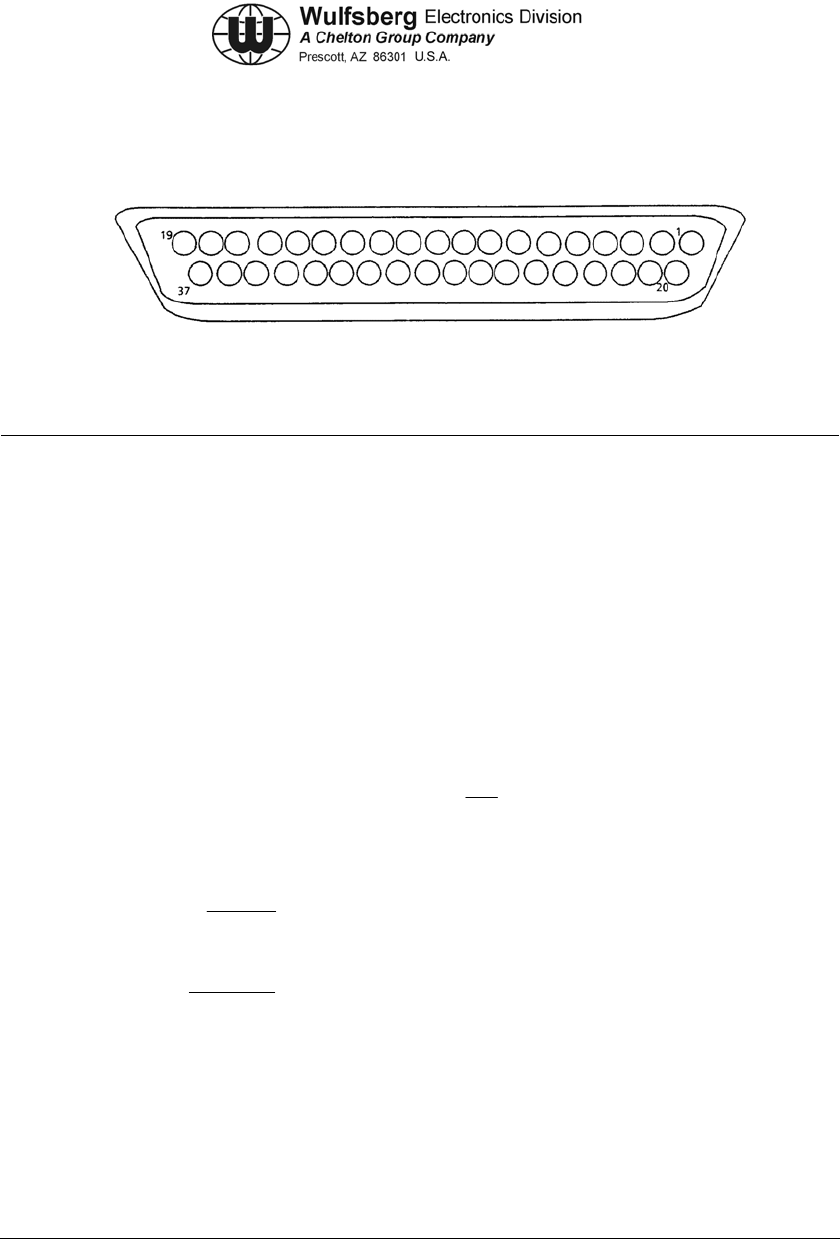

Figure 4-4. P501/P502 Connectors
PIN SIGNAL NAME PIN SIGNAL NAME
1 DIGITAL SHIELD 23 SPARE
2 RS-422 CTRL TX LO 24 SPARE
3 ON/OFF 25 RESERVED OUT SPARE B
4 RS-422 CTRL TX HI 26 VOICE AUDIO LO IN
5 RS-422 CTRL RX LO 27 RESERVED OUPUT SPARE A
6 SPARE 28 SPARE
7 IN SPARE #1 29 AUDIO GND
8 RS-422 CTRL RX HI 30 MIC HI OUT
9 SPARE 31 UNSQL MN RX AUDIO IN
10 SPARE 32 SPARE
11 MIC LO/PTT OUT 33
TX
12 SPARE 34 IN SPARE #3
13 VOICE AUDIO HI IN 35 SPARE
14
CIPHER /
PLAIN
36 IN SPARE #2
15 SPARE 37 GROUND
16
PLAIN /
CIPHER
17 TAKE CONTROL
18 EXT XMT AUDIO OUT
19 GROUND
20 CONTROL GROUND
21 UNSQL GD RCV AUDIO
22 SPARE
Table 4-2. C-5000 Transceiver (RT-5000) Connector P501, P502 Pin Names
