User's Manual

C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Page 4-2 Publication No. 150-041118
Section 4 – Electrical Installation Rev C
May 2006
Step 4:
Panel Lighting. Select the input pin on P500 for the desired backlighting. Options
are 28 Vdc (pin 30) or 5 Vdc/5vrms (pin 8).
Step 5:
System Wiring. Based on steps 1-5, choose the wiring diagrams from this section
that apply to your configuration. Note that if you have two RT-5000’s in your system, copy the
wiring illustrated for P501 to P502. In other words, choose the wiring for each radio and apply
it to the appropriate connector.
A. C-5000 System Interface Connector, P500 Wiring Considerations
(1) P500 Connector

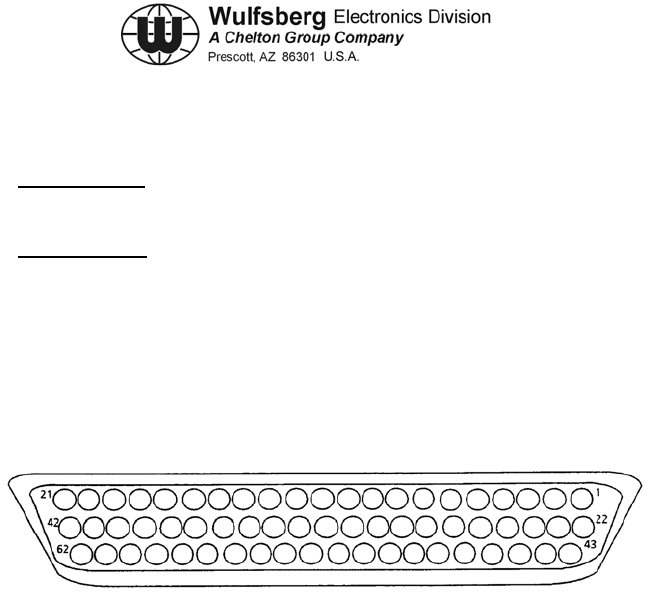

Figure 4-2 P500 Connector
