SECTION 2 - SYSTEM INSTALLATION
1.
General
This section contains system specifications, interface information, and examples of typical system
configurations for the C-5000 Communication Management Controller installed with FLEXCOMM
II, FLEXCOMM I, or a configuration consisting of both FLEXCOMM II and FLEXCOMM I
transceivers. System power requirements are included in Table 2-1. Figures 2-1 through 2- 6
show generalized system interface diagrams.
2.
Sample Systems
The following are examples of ways to configure your aircraft installation:

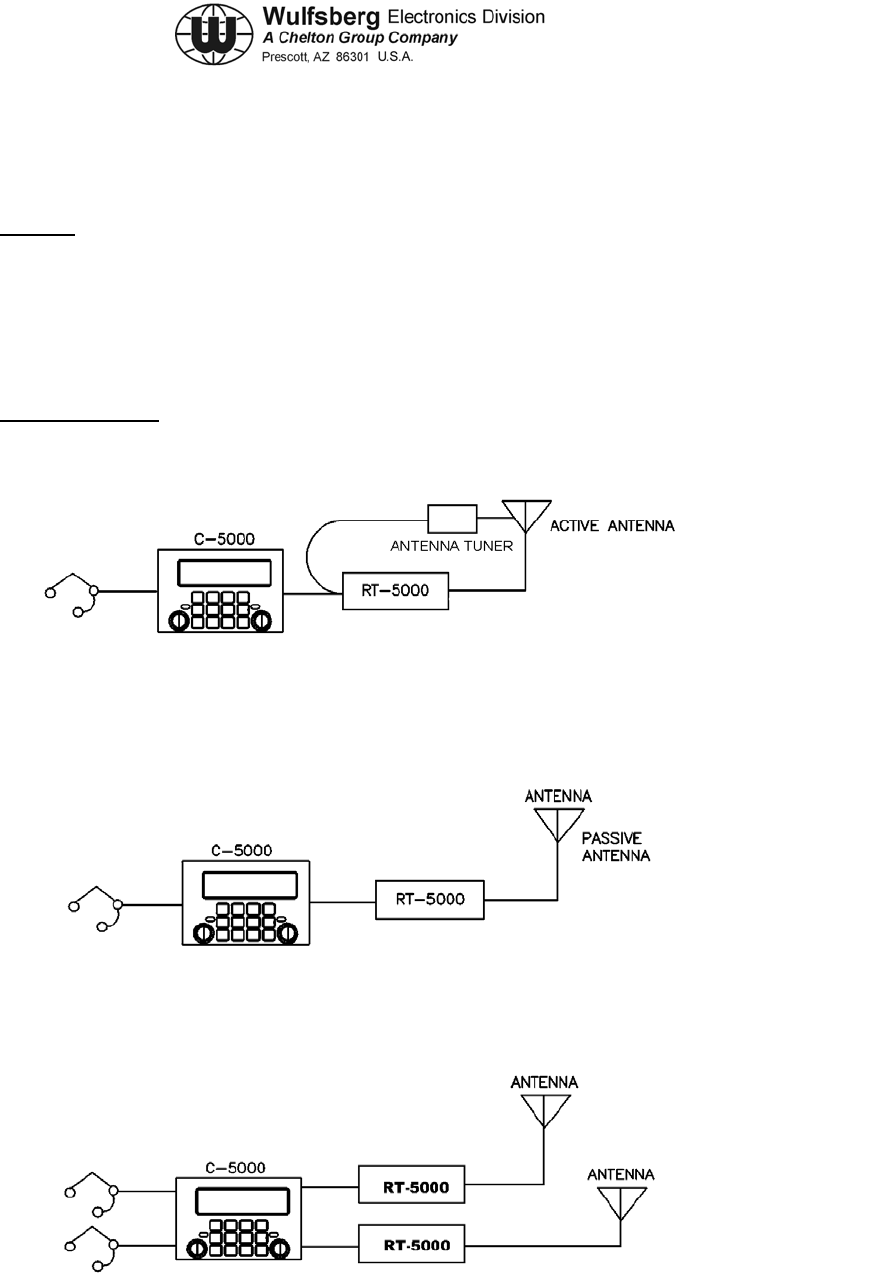

Figure 2-1. Single RT-5000 with Active Antenna
Figure 2-2. Single RT-5000 with Passive Antenna
ACTIVE OR PASSIVE
ANTENNA
ACTIVE OR PASSIVE
ANTENNA
Figure 2-3. Dual RT-5000 with Dual Mic/Headset
