User guide

Pinnacle 2
™
!
Must install 4 screws within
6" of front of track.
!
Be careful not to
drill through worksurface.

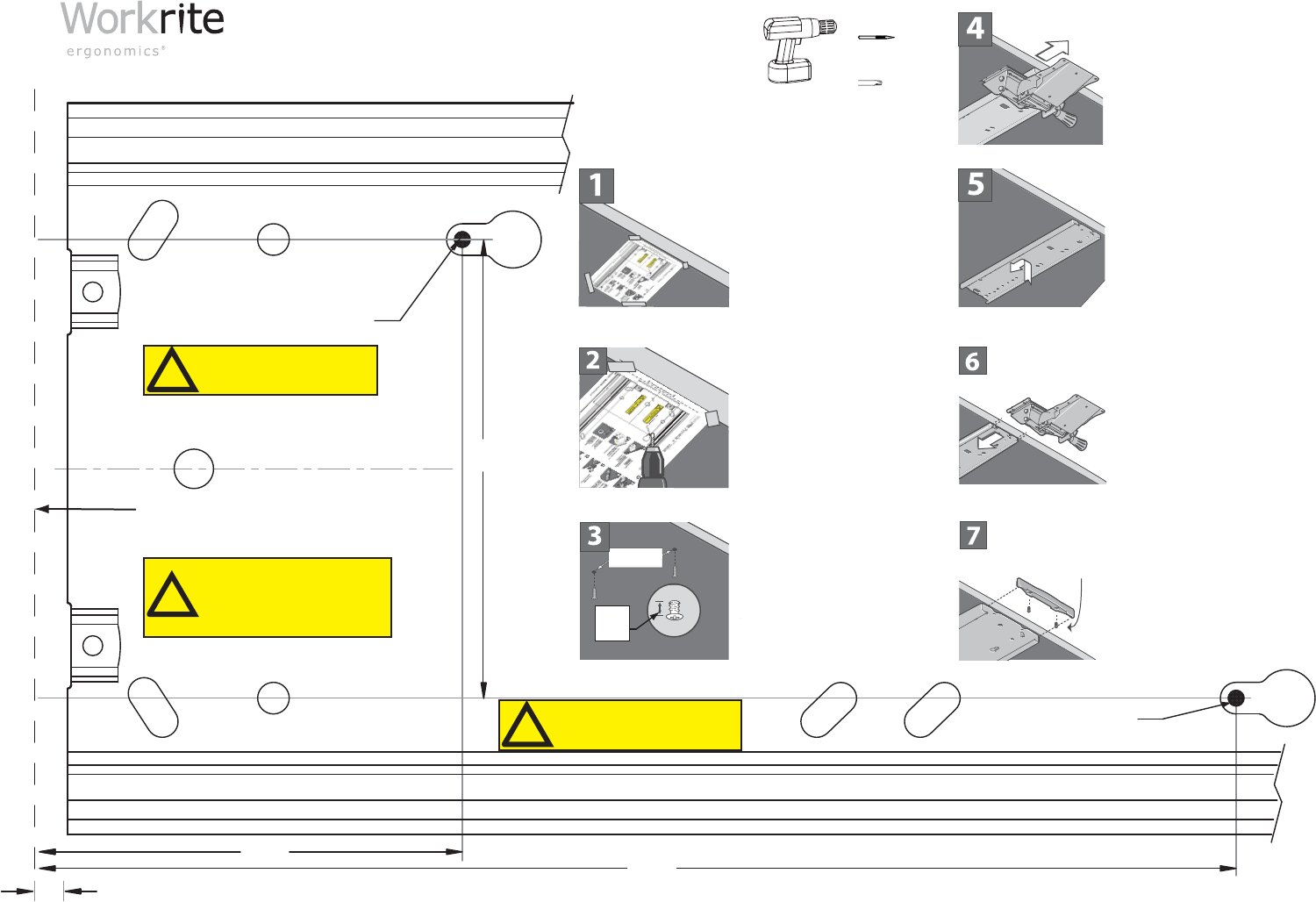

Installation Instructions
3⅝"
3⅜"
¼"
ø⅛" x ¾" deep Pilot Hole
9½"
Front edge of worksurface
(dashed line)
C
L
Workrite Ergonomics | 800.959.9675 www.workriteergo.com
ø⅛" x ¾" deep
Pilot Hole
!
Front edge of track may be
recessed up to 2" from front
edge of worksurface for
increased stowability.
Slide track keyholes
onto screws.
Tighten keyhole screws.
Drill ⅛" diameter x ¾"
deep pilot holes and
install remaining
#12 x ¾" screws.
Slide arm head
out of track.
Insert plastic cover
onto front of track.
Install two #10 x ½"
thread-cutting screws
through cover and
track.
2x #10 x ½"
Slide arm head
onto front of track.
Drill ⅛" diameter x ¾"
deep pilot holes at
marked locations.
Remove template.
Tape template to
underside of
worksurface.
Position template so
dashed line runs along
front edge of
worksurface.
Tools Required:
⅛" bit
+
Phillips head
driver
1500145 Rev A
Value
Install two #12 x ¾"
wood screws into
keyhole pilot holes.
Leave a gap of
approximately ⅛"
between head of screw
and worksurface.
Keyhole
⅛"
gap
