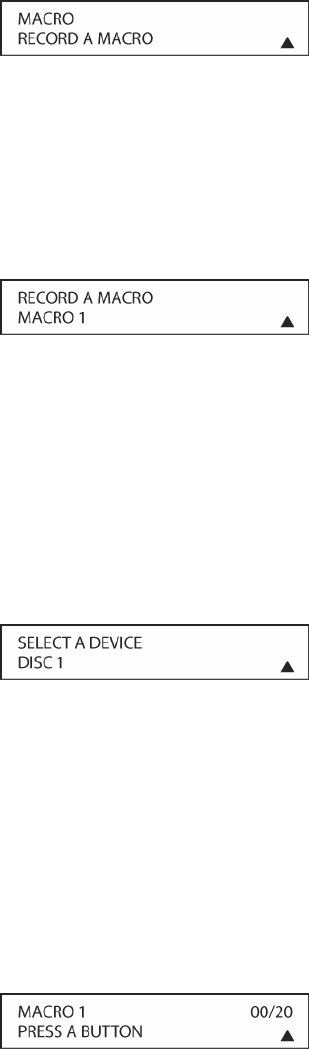

Figure 143
4. The next display screen (Figure 144) is where you select the button that will be used to recall
the macro. The choices are one of the three discrete Macro Buttons, M1, M2, M3 [triangle
29]. Press the ▼/▲Navigation Button [triangle 13] until the name of the button you wish to
program the macro into is shown. For this example we will show how to program a series of
commands that will automatically be sent out every time button M1 [triangle 29] is pressed to
turn on a zone and local video display. Press the Set Button to select M1.
Figure 144
5. The next screen that appears (Figure 145) is where you select the device for the first
command that will be sent out as part of the macro. Press the ▼/▲ Navigation Button
[triangle 13] until the name of the device appears on the left side of the lower line in the LCD
display. For this example, we are going to send a macro to turn on the zone and local video
display so the first button we want to have the macro “press” is the ZONE ON button. The
KP21R macro buttons cannot send the individual input commands, so any source can be
selected. (The input can be selected once the zone and video display have turned on.) Press
the Set Button [triangle 15] when the desired device name appears.
Figure 145
7. The next display (Figure 146) and the subsequent screens are where the actual macro
programming takes place. The words at the left side of the top line of the display show the
button that is being programmed (e.g., the Macro 1 Button [triangle 29]) and the indication
at the right side of the top line shows the number of macro steps available of 20 possible
steps. Following the instructions on the remote’s LCD screen, press the first key you wish to
be transmitted in the macro. In our example, we first want the ZONE to turn on, so the ON
Button [triangle 2] should be pressed. Remember that when you want to change devices,
you must first press the Input Selector [triangle 4] for that button, and then press the
Command or Function key.
Figure 146
8. Once the first command button for the macro has been pressed, continue to press the
buttons you wish to be part of the macro, in the order they will be used. Press each button
within five seconds of the last button, remembering to press the Input Selector [triangle 4]
when you are changing device functions (TV). As the buttons on the remote are pressed, the
remote’s display screen will show the steps in the macro as they are programmed (Figure
147).
