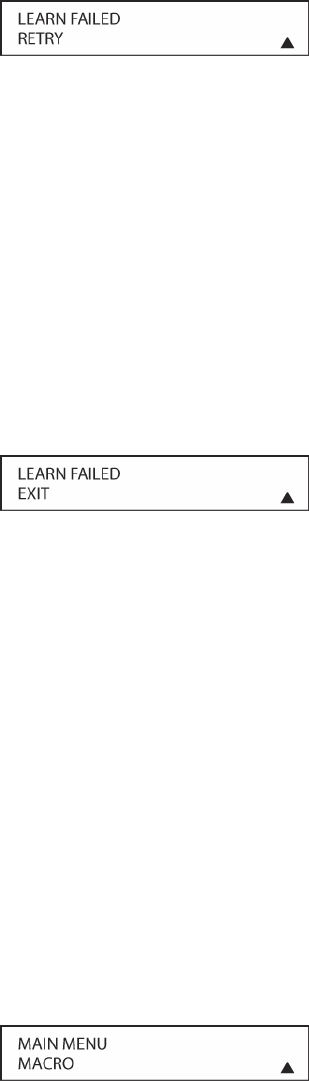

Figure 140
7. If the message shown in Figure 140 appears in the display, press the Set Button [triangle
15] to try programming the button again. When the remote prompts you to press and hold the
key on the original remote again by showing PRESS KEY ON THE ORIGINAL REMOTE in
the display, immediately press the button on the source remote again. To avoid another failed
attempt, make certain that the windows on the two remotes are facing one another.
8. Continue to hold the button on the original remote until the LCD display changes again. If the
code was successfully learned, you will see CODE LEARNED in the display. In that case,
press the Set Button [triangle 15] to store the code. If the LEARN FAILED display (Figure
140) appears again, you may either try to program the key again, or press the REM MENU
Button [triangle 33] to exit Learn. It is possible that some remotes may use code sequences
or infrared frequencies that are not compatible with the KP21R remote, and those codes
cannot be learned. When the display shown in Figure 141 appears, press the Set Button
[triangle 15] to exit the Learning system.
Figure 141
Macro Programming
Macros enable you to easily repeat frequently used combinations of multiple remote control
commands with the touch of a single button. Once a macro is programmed, you may send up to
20 commands by pressing of one of the M1, M2, M3 Macro Buttons [triangle 29]. This will
greatly simplify the process of turning on your system, changing devices or other common tasks.
Thanks to the remote’s two-line display, it is easier than ever for you to take advantage of the
power of macro commands.
Recording a Macro
To record a macro into the remote’s memory, follow these steps:
1. Press and hold the REM MEM Button [triangle 33] for about three seconds while the
message: HOLD BUTTON FOR 3 SECONDS appears in the remote’s LCD Information
Display [triangle 3]. Release the button when the red light under the Set Button [triangle
15] turns on.
2. The remote’s MAIN MENU message will appear in the LCD display and the Set Button
[triangle 15] will remain illuminated in red. Press the ▲ Navigation Button [triangle 13] two
times so MACRO appears on the bottom line of the LCD screen, as shown in Figure 142.
Press the Set Button [triangle 15] to enter the main macro menu branch.
Figure 142
3. At the next menu screen (Figure 143) press the Set Button [triangle 15] to begin recording
a macro.
