Buttons [oval 16] to review Setup Pages and Settings. Make changes as necessary. Refer to
previous instructions. Confirm system functions from zones using keypads.
To exit menu and return to system mode, press the Exit Button [oval 17].
Keypad Setup By Name
Keypad Setup By Name, allows zone configuration when searching by zone name. The Keypad
Number is assigned by the system given which KP 1-20 Terminal [pentagon 5] a keypad is
connected to on an AVH21. Zone Name can only be edited in Keypad Setup by Number, above.
To make changes to zone settings in KEYPAD SETUP BY NAME:
1. In the Main Room, turn on the AVR21EN and Main Room video display.
2. Press the AVR Button [oval 5] on the AVR21ENR1 remote.
3. Press the MENU Button [oval 44] on the remote. The MAIN MENU will appear.
4. Press the▼ Navigation Button [oval 16] until the cursor is next to: ZONE SETUP.
5. Press the Set Button [oval 18]. ZONE SETUP PAGE 1 will appear.
6. Make changes in ZONE SETUP PAGE 1 as described in Zone Setup.
7. To enter ZONE SETUP BY NAME, use the ▼/▲Navigation Buttons [oval 16] to position the
cursor next to GO TO ZONE PAGE 2. Press the Set Button [oval 18].
8. Use the ▼/▲Navigation Buttons [oval 16] to position the cursor next to ZONE SETUP BY
NAME. Press the Set Button [oval 18].
9. Use the ◄/►Navigation Buttons [oval 16] to select zone to be configured, by name.
10. Follow the instructions in Section: Keypad Setup by Number.
Diagnostics
The Diagnostic screens provide real-time system information regarding which W.H.E.N. System
components are connected and the firmware versions in the components found.
To open the DIAGNOSTICS Menu:
1. In the Main Room, turn on the AVR21EN and main room video display.
2. Press the AVR Button [oval 5] on the AVR21ENR1 remote.
3. Press the MENU Button [oval 44] on the remote. The MAIN MENU will appear.
4. Press the▼ Navigation Button [oval 16] until the cursor is next to: DIAGNOSTICS.
5. Press the Set Button [oval 18]. The DIAGNOSTICS screen will appear. (Figure 119)

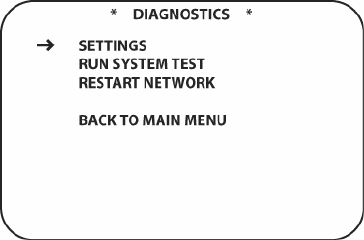

Figure 119 Diagnostics Main Menu
Settings
These screens show that the main system components, the AVR21EN and AVH21 A/V Hubs are
connected, powered up and functional. The values associated with each line item refer to
software and firmware versions and are primarily intended for use by service personnel. In some
cases if a system is not performing properly, Audioaccess Tech Support may request some of
this information. These values are not accessible or configurable from this screen.
