User's Manual

191

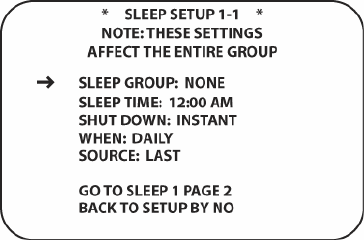

Figure 116 Sleep Setup 1-1
Sleep Setup 1-1
This sub-menu sets the parameters for each Sleep Group. These setting affect the entire group,
but do not affect manual Sleep settings set from the zone keypads.
Sleep Group
This indicates the Sleep Group being configured. Sleep Group is not selectable in this screen.
The Group is selected in the SET-UP BY NUMBER PAGE 3 screen on the SLEEP GROUP: line.
To select a Sleep Group:
1. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to BACK TO SETUP
BY NO. Press the Set Button [oval 18].
2. In the SETUP BY NUMBER PAGE 3 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to SLEEP GROUP.
3. Using the ◄/► Navigation Button [oval 16], select the group to be configured: 1, 2, 3, 4, 5,
6, 7, 8.
4. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to SET SLEEP
TIMES. Press the Set Button [oval 18].
Sleep Time
This setting assigns the time that the group being configured will turn off. This setting affects all
zones in the group.
To set Sleep Time:
1. In the SLEEP SETUP 1-1 screen, press the ▼/▲ Navigation Button [oval 16] to position
the cursor next to SLEEP TIME 1. Press the Set Button [oval 18]. The HOUR field will start
to flash.
2. Using the ▼/▲ Navigation Button [oval 16], select the HOUR that the group being
configured is to turn OFF.
3. Press the ► Navigation Button [oval 16]. The MINUTE field will start to flash.
4. Using the ▼/▲
Navigation Button [oval 16], select the MINUTE that the group being
configured is to turn OFF.
5. Press the ► Navigation Button [oval 16]. The AM/PM field will start to flash.
6. Using the ▼/▲ Navigation Button [oval 16], select AM or PM for the turn off time for the
group being configured.
7. Press the Set Button [oval 18] to store the Sleep Time.
Shut Down
This setting determines how long the Sleep Group will stay on. The range is 5-90 minutes in five
minute increments, with an additional option of INSTANT, which will turn a zone off, if on, when
the Sleep Time for that group is reached.
To set Shut Down:
