187
1. In the SETUP BY NUMBER PAGE 3 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to DOOR OPEN.
2. Using the ◄/► Navigation Button [oval 16], select the setting for the zone being
configured: ENABLED or DISABLED.
Wake-Up Group
This setting assigns the zone being configured to a Wake-Up Group. A Wake-Up Group is a
group of zones that have been configured to turn on at a specific time, to a specific source, at a
specific volume, for a pre-set duration. Each zone has the option to be a part of a Wake-Up
Group (1-8) or not (NONE). All zones set to the same group number will turn on and off together.
Each Wake-Up Group can have two Wake-Up Times. NOTE: Zones can also be configured
manually for individual Wake-Up functions when desired.
To assign a zone to a Wake-Up Group:
1. In the SETUP BY NUMBER PAGE 3 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to WAKE-UP GROUP.
2. Using the ◄/► Navigation Button [oval 16], select the group for the zone being configured:
NONE, 1, 2, 3, 4, 5, 6, 7, 8.
3. Using the ▼/▲Navigation Button [oval 16] position the cursor next to SET WAKE-UP
TIMES. Press the Set Button [oval 18]. The WAKE-UP SETUP 1-1 screen will appear.
(Figure 113)

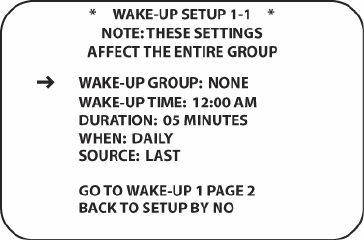

Figure 113 Wake-Up Setup 1-1
Wake-Up Setup 1-1
This sub-menu sets the parameters for each Wake-Up Group. These setting affect the entire
group, but do not affect manual Wake-Up settings set from the zone keypads.
Wake Up-Group
This indicates the Group being configured. Wake-Up Group is not selectable in this screen. The
Group is selected in the SET-UP BY NUMBER PAGE 3 screen on the WAKE-UP GROUP: line.
To select a Wake-Up Group:
1. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to BACK TO SETUP
BY NO. Press the Set Button [oval 18].
2. In the SETUP BY NUMBER PAGE 3 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to WAKE-UP GROUP.
3. Using the ◄/► Navigation Button [oval 16], select the group to be configured: 1, 2, 3, 4, 5,
6, 7, 8.
4. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to SET WAKE-UP
TIMES. Press the Set Button [oval 18].
