Keypad: This option allows the user to change Wake-Up Group or Sleep Group Settings for the
specific keypad being configured. Changes will not affect any other keypad in the Group and
Local Wake and Sleep Settings can be configured independent of Group Settings.
Group: This option allows the user to block Wake-Up Group or Sleep Group Settings for the
specific keypad being configured by pressing DISABLE TIMER on the keypad. Changes will not
affect any other keypad in the Group.
None: This option blocks all Wake-Up Group and Sleep Group Settings for the specific keypad
being configured. This setting will also block all Local Wake and Sleep Settings for the specific
keypad being configured.
To set Permission:
1. In the SETUP BY NUMBER PAGE 1 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to PERMISSION.
2. Using the ◄/► Navigation Button [oval 16], set the permission for the zone being
configured: KEYPAD, GROUP, NONE.
To exit setup, press the Exit Button [oval 17]. To continue Zone Setup, position the cursor next
to GO TO PAGE 2 and press the Set Button [oval 18]. SETUP BY NUMBER PAGE 2 will
appear. (Figure 111) To return to MAIN MENU, position the cursor next to MAIN MENU and press
the Set Button [oval 18].

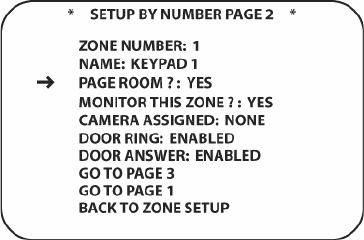

Figure 111 Zone Setup By Number Page 2
Page 2
Keypad Number
Not configurable.
Keypad Name
Not configurable in this screen.
Page Room
This setting determines if and when a zone will be paged. There are four options:
YES: This option allows the zone being configured to be paged at any time.
NO: This option blocks paging to the zone being configures at all times.
ONLY IF ON: This option will only allow paging to the zone being configured when the zone is
ON.
ONLY IF OFF: This option will only allow paging to the zone being configured when the zone is
OFF.
To set Page Room:
1. In the SETUP BY NUMBER PAGE 2 screen, press the ▼/▲ Navigation Button [oval 16] to
position the cursor next to PAGE ROOM.
