This section names the Wake-Up Groups. Building the groups will be done in a later section. To
name Wake-Up Groups:
1. From ZONE SETUP PAGE 1, with the cursor next to NAME WAKE-UP GROUPS, press the
Set Button [oval 18]. The NAME WAKE-UP GROUPS screen will appear. (Figure 105)
2. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to NAME. Press the
Set Button. A white rectangle will flash to the right of NAME: indicating that the remote can
be used to enter the letters for the group name.
3. Using either the ▼/▲ Navigation Button [oval 16] or the Alphanumeric Buttons [oval 46],
enter the first letter for the group name. (i.e. MASTER SUITE). When the first letter appears
on screen, press the ► Navigation Button [oval 16] to move the cursor to the next letter
position.
4. Repeat steps 2-3 above until the Wake-Up Group Name has been spelled out. A Group
Name can have up to 12 letters. Press the Set Button [oval 18]. This will store the name and
return the cursor to the arrow next to NAME.
5. To name additional groups, press the ▼/▲ Navigation Button [oval 16] to position the
cursor next to GROUP. Press the ◄/► Navigation Button [oval 16] to select another group.
6. Repeat steps 2-4 until all desired Wake-up Groups have been named. Up to 8 Wake-Up
Groups can be created.
To exit setup, press the Exit Button [oval 17]. To continue Zone Setup, position the cursor next
to BACK TO ZONE SETUP and press the Set Button [oval 18]. ZONE SETUP PAGE 1 will
appear.

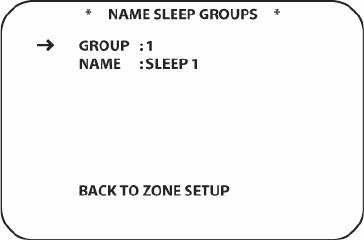

Figure 106 Name Sleep Groups Screen
Name Sleep Groups
Sleep Groups set scheduled times to shut down specific zones or groups of zones. This is a
convenient feature for turning off the Patio Zone at a pre-determined time as to not disturb the
neighbors or for managing systems if zones are turned on and then left alone. NOTE: It is not
necessary to set a Sleep Group for a Wake-Up Group. Wake-Up Groups have a preset duration
for activity before they shut off automatically.
This section names the Sleep Groups. Building the groups will be done in a later section. To
name Sleep Groups:
1. From ZONE SETUP PAGE 1, with the cursor next to NAME SLEEP GROUPS, press the Set
Button [oval 18]. The NAME SLEEP GROUPS screen will appear. (Figure 106)
2. Press the ▼/▲ Navigation Button [oval 16] to position the cursor next to NAME. Press the
Set Button [oval 18]. A white rectangle will flash to the right of NAME: indicating that the
remote can be used to enter the letters for the group name.
3. Using either the ▼/▲ Navigation Button [oval 16] or the Alphanumeric Buttons [oval 46],
enter the first letter for the group name. (i.e. PATIO). When the first letter appears on screen,
press the ► Navigation Button [oval 16] to move the cursor to the next letter position.
