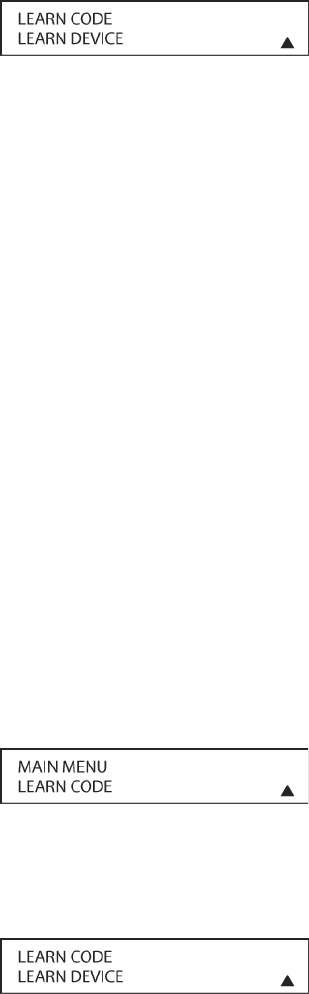

3. Press the Set Button [oval 18]. The message in the LCD display will change to the LEARN
CODE menu (Figure 49). The bottom line will default to the LEARN DEVICE option.
Figure 49
Press the Set Button [oval 18]. The message: PRESS DEVICE TO BE PROGRAMMED will
appear in the LCD display. Press the remote Input Select Button [oval 4] to which the IR
command is to be added. The message: PRESS BUTTON ON ORIGINAL REMOTE will
appear in the LCD display.
With the two remotes properly positioned, lens to lens, press the button on the original
remote and hold it until: CODE LEARNED CONTINUE appears in the LCD display. The Set
Button [oval 18] will illuminate red. Press the Set Button [oval 18] to ‘save’ the command.
The red light will turn off. The message: PRESS DEVICE TO BE PROGRAMMED will again
appear in the LCD display. Either: press another input select button to teach additional
commands to other input select buttons, or press the REM MENU Button [oval 36] to exit
LEARN Menu and return to normal operation.
4. Press the Input Select Button [oval 4] just programmed to confirm proper system
performance. If a code wasn’t learned or if the wrong code was inadvertently programmed,
repeat the previous steps to make corrections.
Learn Button:
1. Press and hold the REM MENU Button [oval 36] for about three seconds while the
message: HOLD BUTTTON FOR 3 SECONDS appears in the remote’s LCD Information
Display [oval 3]. Release the button when the red light under the Set Button [oval 18]
appears.
2. The remote’s MAIN MENU message will appear in the LCD display and the Set Button [oval
18] will remain illuminated in red. Press the ▲ Navigation Button [oval 16] once so that
LEARN CODE appears on the bottom line of the LCD screen, as shown in Figure 50.
Figure 50
3. Press the Set Button [oval 18]. The message in the LCD display will change to the LEARN
CODE menu. The bottom line will default to the LEARN DEVICE option. (Figure 51)
Figure 51
Press the ▼▲ Navigation Button [oval 16] to change the option in the lower line to: LEARN
BUTTON. Press the Set Button [oval 18]. GAME/CAM will default to the lower line. (Figure
52)
