INSTALLATION
wolfappliance.com | 7
5 Slide the upper chimney ue onto the support frame and
attach to the support frame using screws provided. Refer
to the illustration below. Slide the lower chimney ue
over the upper and temporarily secure in this position
using adhesive tape.
6 Raise the hood to the support frame and connect the
hood to the support frame with four screws provided.
Refer to the illustration below.
7 Insert the two prong connector from the hood into the
receptacle on the support frame.
8 For internal blowers, install the blower. For remote
blowers, continue to step 9.
9 Make wiring connections. Refer to page 9.
10 Once wiring connections are complete, remove the
adhesive tape securing the lower chimney ue, then
lower until it rests on the hood.
WARNING
Failure to install the screws or xing device in accor-
dance with these instructions may result in electrical
hazards.
Installation
ISLAND HOOD
1 Mark the center line for location of four mounting holes
using dimensions shown in the illustration below. Use
the template provided to mark the mounting support
locations, then use a 1
1
/4" drill bit to create a hole for the
electrical power supply.
2 Place four mounting screws into the ceiling, then posi-
tion the support frame on those screws. Once the sup-
port frame is in place, tighten screws.
3 Determine the desired height of the support frame and
adjust the height by removing four screws. Once the
desired height is achieved, reinstall and tighten screws.
4 Place the damper on the support frame then attach
ducting to the damper.
8
5
/8
"
(219)
ELECTRICAL
LOCATION
11"
(279)

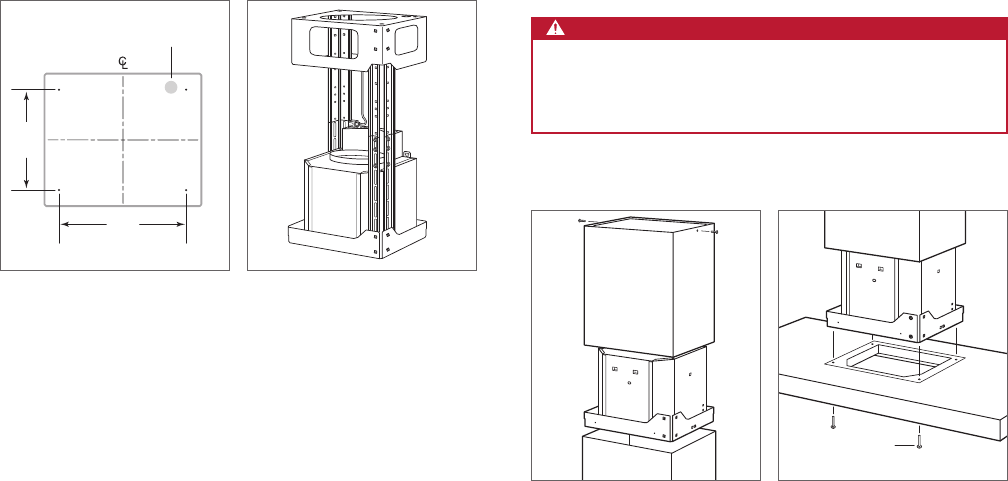

Mounting location. Support frame.
MOUNTING
SCREW
UPPER
FLUE
MOUNTING
SCREW
Install telescopic ue. Mount hood.
