Hardware characteristics WGATE-PRO-41A1F1 rev 1.5
1.4 10/100/1000 Ethernet
The GW supports one GbE port. The Ethernet port operates in a 10BASE-T, 100BASE-TX or
1000BASE-T configuration and supports auto MDI/MDIX for automatically switching data receive
and data transmit pairs. Additional features include full-duplex operation as well as support for
auto-negotiation. The Ethernet MAC address is programmed during manufacturing.
The Ethernet port is available through a standard RJ45 connector with integrated status lights. The
green status light indicates link and activity. The green light is on for link and blinking for activity.
The yellow status light indicates speed. The yellow light is off for 10Mbps, on for 100Mbps, and
blinking for 1000Mbps.
.

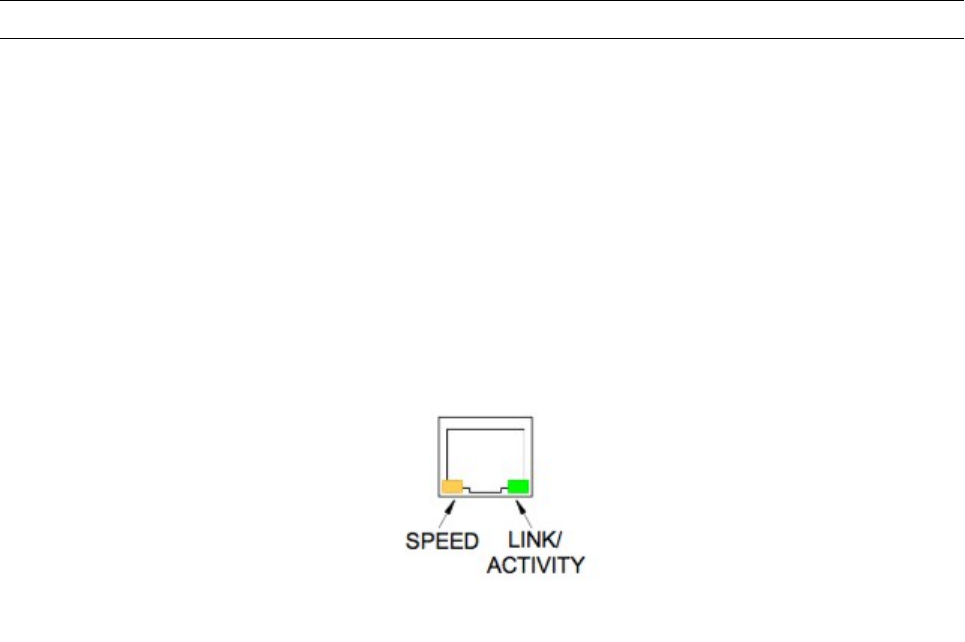

Drawing 2: Ethernet RJ45 Connector
