User's Manual

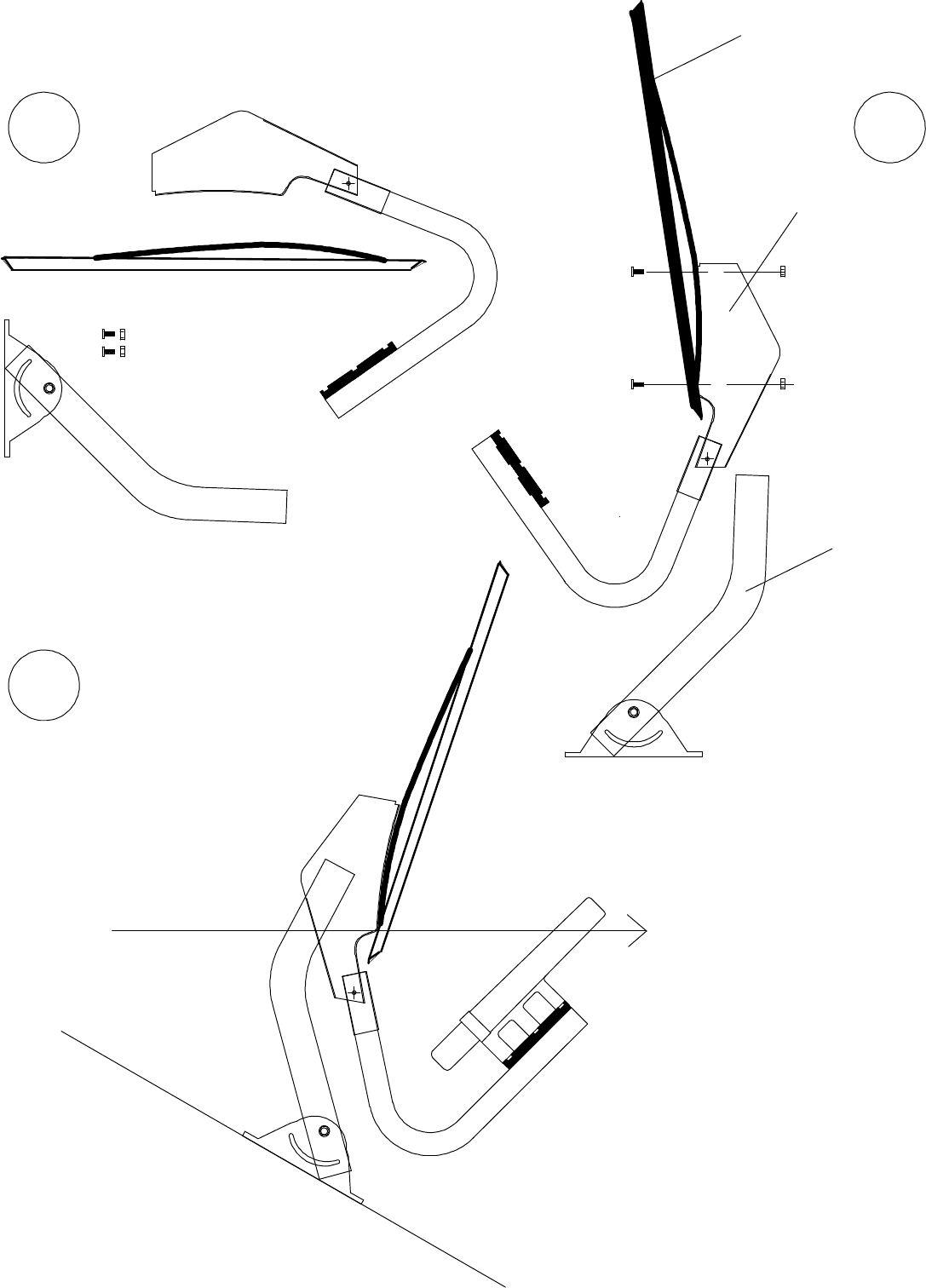

Reflector

Mount reflector to bracket with

four bolts. Slip reflector

and bracket onto base.

Module Arm

Base

Boresite line. Approximately the bottom edge of the

module arm where it touches the dish to the little

step features molded into the upper portion of the

Canopy case.

Aim for max RSSI and lowest Jitter.

No need for the Base tube to be plumb.

Attach to conventional roofs

with lag bolts into a truss.

SM snaps on.

Push and twist from

side to side to ensure

all 4 tabs snap into

place.

Use screwdriver

to press tabs to

remove.

Bolts

Nuts

Module Arm

Reflector

Base Mount

Parts List

Dish Assembly

Dish Mounting and

Aiming
