User's Manual
Buttons’ Features:
ON/OFF button: Press this button to turn receiver’s power “ ON ”, pressing a few sec will turn the power “ OFF ”。
Audible / Vibration alert button: While power “ON ”; Press and hold this button one sec, a “Bi Bi” is heard to confirm the pager in beep mode without icon. Upon a second press , vibration
is felt to confirm the pager in vibration alert mode and
will show up。
RESET/ Backlight button: Press this button to have backlight a few sec. During any alert, pressing of it will mute beep sound and immediately the receiver gets into a standby mode.
※
Power source for pager receiver: 1.5 V alkaline battery x 1 piece
。
Operation Guide:
1. POWER-ON: Icons appear along with audible sound or vibration. Then receiver gets into standby mode【Note: The main system must be in the “arm mode”.】。
2. POWER-OFF : All active icons disappear following audible sound or vibration.。

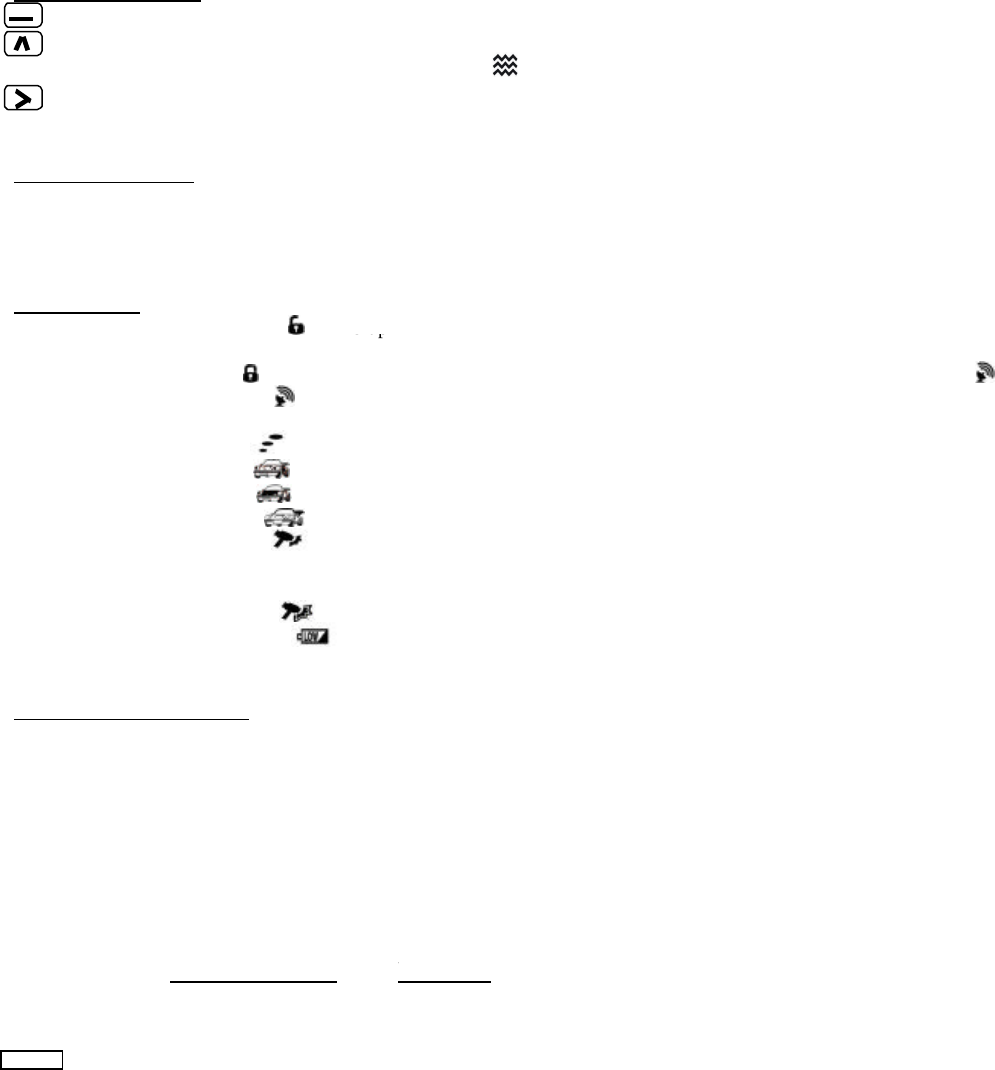

Icon Guide:
1. Unlock/disarm Mode :This shows up if the car is disarmed / unlocked. During this mode, only page-out and engine-start functions can still be operated while other functions become
invalid
2. Lock/arm Mode :This shows up if the car is locked. 15 sec later, the receiver makes a beep sound and displays to confirm that the car gets into ARM MODE.
3. Range Check Mode :This shows up during 5 min-range-check if pager can be receiving signal from the car’s transmitter immediately after LOCK MODE. This icon stays on within the
effective range for the whole 5 min duration. It will disappear either the pager is beyond effective range or 5-min range check is over.
4. Engine Run Mode: This will show up audible or vibration alert if the car’s engine is running.
5. Door Open Mode: This will show up with audible or vibration alert if the door is opened in lock / arm mode.
6. Hood Open Mode: This will show up audible or vibration alert if the hood is opened in lock / arm mode.
7. Trunk Open Mode: This will show up audible or vibration alert if the trunk is opened in lock / arm mode.
8. Light Impact Mode: This will show up audible or vibration alert if the car in lock / arm mode experiences a light impact .
9. Heavy Impact Mode: This will show up audible or vibration alert it the car in lock / arm is bumped or shaken with force.
10. Low Battery Indicator : This will show up audible or vibration alert when the pager’s battery is very low.
11. Page out Call :A person in the car can send (within effective range) a page call by pushing the button on the antenna’s case to anyone carrying the receiver. He will be alerted by sound like
telephone ring or vibration by his receiver. .
Other System features:
1. Modes and Audible alert: Different icons and audible alert enable car owner to monitor car’s various modes.
2. Last Status Memory: After lock mode, the receiver retains the latest car status until it receives UNLOCK report feedback . It will reset itself afterwards.
3. Page-out Call button: There is a page-out call button in the center of the circular antenna case which can be used to page a person carrying receiver in case of need.
4. When the main system of the vehicle enters “ arm mode”, the status LED on the transmitter/ antenna case blinks slowly and steadily and pulse during transmission. This acts as a warning sign
against any theft attempt.
※
Code Learning of receiver :For replacement or to have a spare receiver, follow the instruction below. Turn pager’s power “OFF” first. Then press and hold the ON/OFF button for about 5 sec
till one beep is heard when the receiver gets into 20 sec learning mode. Release the button and push the call-out button to transmitter a paging signal which will then be learned by the receiver
still active in the learning mode. The receiver will respond with a series of beeps to confirm its success of code learning.
MODEL:LCA-2200 LONG RANGE VEHICLE MONITOR
INSTALLATION MANUAL
l This can be installed on any vehicle with its normal voltage of 12 Volt.
l LCA-2200 can work on any of the following 3 different circuit types of the vehicle to control “ON” and “OFF” modes of vehicle monitoring. Installation should be done according to the actual
circuit condition of the vehicle.
A Type : In this type, vehicle is installed with remote security system which has start kill output to enable main control module to operate the monitoring “ON” and “OFF” functions.
1
2
3
