Pre-Installation
975-0004-01-02 Rev D 17
If using “sealed” batteries, the controller can be mounted in
the same enclosure as long as it is adequately ventilated.
WARNING: Explosion/Corrosion Hazard
Do not locate the C-Series controller in a sealed compartment with
the batteries. Batteries can vent hydrogen-sulfide gas, which is
corrosive to electronic equipment. Batteries also generate hydrogen
and oxygen gas that can explode when exposed to a spark.

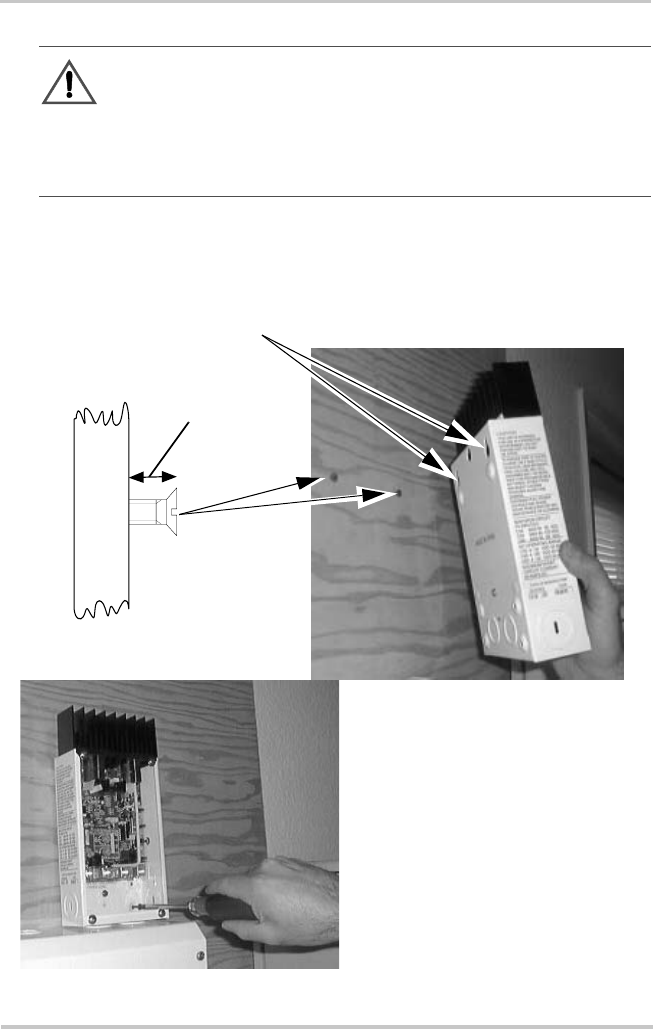

Figure 2-3
Mounting the C-Series Multifunction DC Controller
Mounting Surface
Secure in place with
2 more screws.
Place keyhole slots on the back of the
controller over the mounting screws.
Mounting
Screws
Approximately
¼inch
