Operating Modes
975-0004-01-02 Rev D 5
Bulk Stage
During this stage, the batteries are charged at the bulk voltage
setting and maximum current output of the DC source. When
the battery voltage reaches the bulk voltage setting, the
controller activates the next stage (absorption).
Absorption Stage
During this stage, the voltage of the battery is held at the bulk
voltage setting until an internal timer has accumulated one
hour. Current gradually declines as the battery capacity is
reached.
Float Stage
During this stage, the voltage of the battery is held at the float
voltage setting. Full current can be provided to the loads
connected to the battery during the float stage from the PV
array. When battery voltage drops below the float setting for
a cumulative period of one hour, a new bulk cycle will be
triggered.

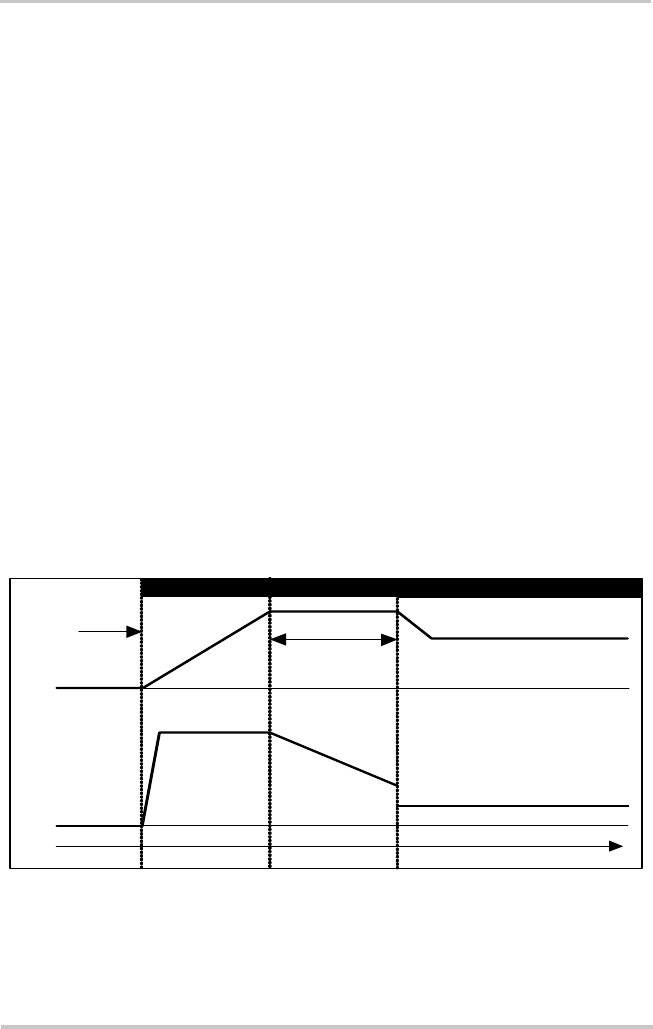

Figure 1-2
3-stage Battery Charging Process
Bulk Stage
Float Stage
DC Voltage
DC Current
Constant Current Reducing Current Reduced Current
Bulk Volts Setting
Float Volts Setting
Time
Max Amps
Absorption Time
Charging
Started
Increasing Voltage Constant Voltage Reduced Voltage
0 amps
0 volts
Absorption Stage
