SABER/STRIDE II 28/34 98570 7/14/98

BATTERIES

TO CHARGE THE BATTERIES

When servicing machine, avoid contact with bat-

tery acid.

Batteries emit hydrogen gas. Explosion or fire

can result. Keep sparks and open flame away.

Keep covers open when charging.

Wear eye protection and protective clothing when

working with batteries.

Charge batteries in a well ventilated area. Leave

the solution tank open.

Use a 36 volt, 20 amp maximum output, DC charger which

will automatically shut off when the batteries are fully

charged to charge the six battery pack.

1. Stop the machine in a clean, well ventilated area next

to the charger

2. Turn “OFF” machine and set parking brake.

FOR SAFETY: Before leaving or servicing machine;

Stop on level surface, set parking brake, turn off

machine and remove key

3. Drain solution tank and raise the solution tank and

lock the support arm. Make sure the support arm is

fully engaged.

Batteries emit hydrogen gas. Explosion or fire can re-

sult. Keep sparks and open flame away. Keep covers

open when charging.

4. Check the electrolyte level in each battery cell. Before

charging, add just enough water to cover the plates.

After charging is complete, add just enough water to

bring up the level to the indicator ring. If the water level

is too high before charging, normal expansion of the

electrolyte may cause an overflow, resulting in loss of

battery acid balance and damage to the machine.

5. Replace the battery caps, and leave them in place

while charging.

6. Unplug the battery connector from the machine.

FOR SAFETY: When charging, connect the charger to

the batteries before connecting the charger to the AC

wall outlet. Never connect the charger to the AC wall

outlet first. Hazardous sparks may result.

7. Plug the charger connector into the battery connector.

Connect the charger AC plug to a wall outlet. The

charger gauge should indicate that the batteries are

charging.

8. When the batteries are fully charged, disconnect the

charger from the AC wall outlet, then disconnect the

charger from the batteries.

9. Connect the batteries to the machine connector.

10. Check the electrolyte level. It should be up to the indi-

cator ring. If necessary add distilled water.

11. Lower the solution tank.

CHANGING BATTERIES

TO REMOVE BATTERIES

Stop the machine in a clean area next to the charger

Turn off machine and set parking brake.

FOR SAFETY: Before leaving or servicing machine;

Stop on level surface, set parking brake, turn off ma-

chine and remove key

1. Raise the solution tank.

2. Engage solution tank support arm

3. Disconnect battery pack from machine.

4. Use the proper size open end wrench to disconnect

main ground wire first and secure cable terminal away

from batteries.

5. Disconnect main positive lead and secure cable termi-

nal away from batteries.

6. Loosen both terminals on each jumper cable and

remove one at a time.

7. Prepare a suitable site to place the batteries.

8. Attach suitable battery lifting device and lift batteries

from the machine.

Batteries are a potential environmental hazard.

Consult your battery supplier for safe disposal

methods.

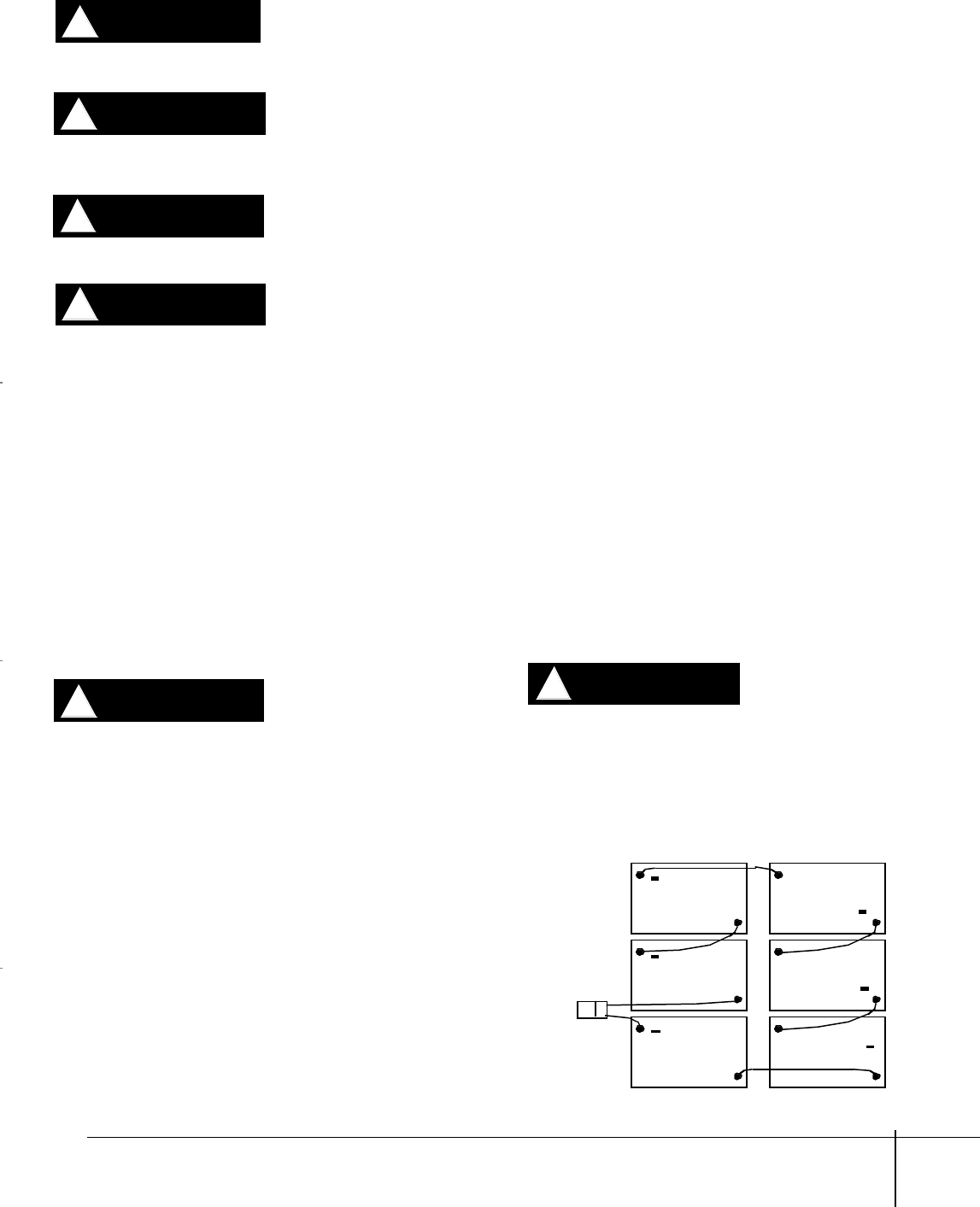

BATTERY CONNECTIONS SABER/STRIDE II

! WARNING

! CAUTION

! WARNING

red

blk

red

blk

red

blk
