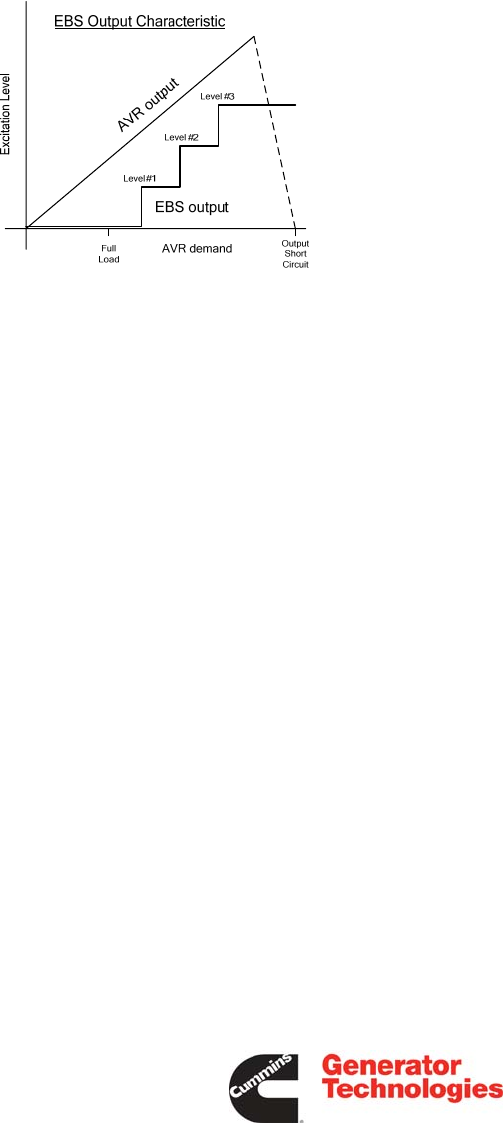

The output characteristic of the EBS is as shown
below. The high-speed interaction between the EBS
output and AVR demand is effectively ‘smoothed’ by
the connected generators excitation component
time-constants.
POWER INPUT
Voltage 90-130 Vac 3 phase
Frequency 100-120 Hz nominal
OUTPUT
Voltage 120 Vd.c. @ 100 Va.c power input.
Current continuous 6A
Resistance 15 ohms min
TYPICAL SYSTEM RESPONSE
EBC response 20ms
INTERNAL TIMERS
Start-up timer 5sec nominal
Overload protection timer 5sec nominal
UNIT POWER DISSIPATION
12 watts maximum
