Designer Blood Drawing Chair Instruction Manual

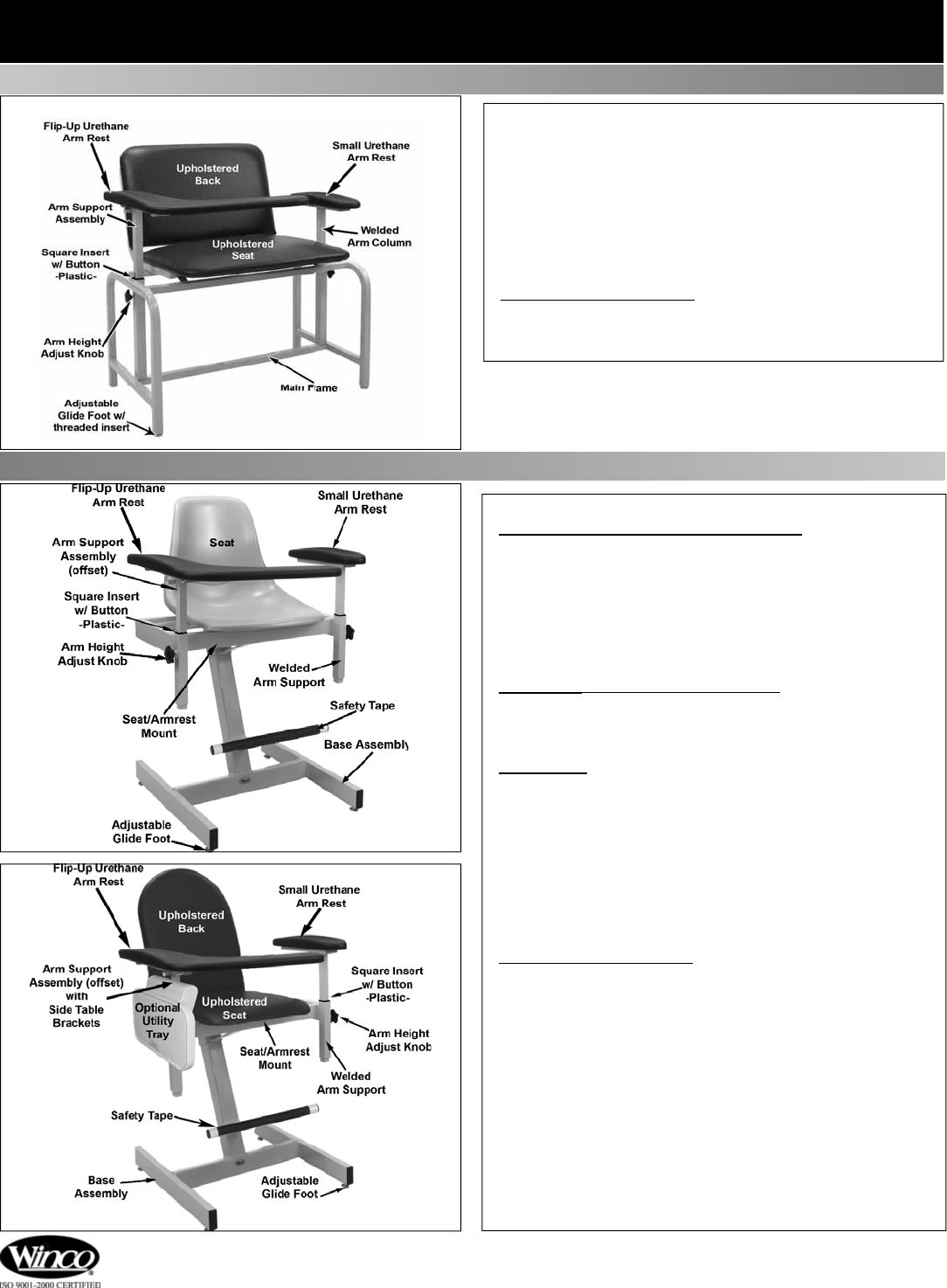

Parts Guide & List

Main Frame .................................................................. 226102

Arm Support Assembly ................................................ 226270

Welded Arm Column

(for Small Arm, Left) ...................... 226255

Seat & Back Frame ...................................................... 226320

Lock Nuts, (

for seat screws) ...........................................566204

Adjustable Glide Foot......................................................500350

*With Pivot-Swing Arm Option:

*Upholstered Arms. ................................(call for upholstered part #’s)

*Welded Arm Column (on right, instead of 226270) .................226360

2575

RIGHT SIDE, Flip-Up Urethane Arm Parts:

Arm Support Assembly, offset (no ST brkts) ................226290

(FOR STANDARD STYLE CHAIRS WITHOUT A SIDE TABLE)

Arm Support Assembly, offset (ST brkts)...................... 226280

Side Table w/ Cover Assm Kit (RIGHT side ONLY)

..... 261650

(FOR STANDARD STYLE CHAIRS WITH A SIDE TABLE)

LEFT SIDE, Small Urethane Arm Parts:

Welded OFFSET Arm Column Assm, (for Sm Ureth Arm) ....226260

(Note: Side Table on Left side is not an available option)

Base Parts:

Base Weldment ............................................................226400

Seat/Arm Rest Mount ...................................................226420

Adjustable Glide Foot......................................................500350

Lock Nuts, (

for seat screws) ...........................................566204

Gray Fiberglass Shell Seat (2577 ONLY) .................... 705320

Seat & Back Frame (2578 ONLY) ................................ 226440

*With Pivot-Swing Arm Option:

RIGHT SIDE PARTS:

*Arm Assm. Wood Set (instead of 708010) ..............................267300

*Welded Pivot-Arm Support, offset (NO side table brkts) ........226240

*Welded Pivot-Arm Support, offset (WITH side table brkts) ...226245

* 2578 Upholstered Arms. ......................(call for upholstered part #’s)

LEFT SIDE PARTS:

*Arm Rest, (small wood arm instead of 708020) ......................267301

*Welded Pivot-Arm Support w/Slot offset ................................226225

* 2578 Upholstered Arms ........................(call for upholstered part #’s)

2577-2578
