Appendix A: WIMAN Hardware
8.4 Hybridcable
In the following, all hybrid cables with their appropriate area of
application are described.
Note:
The 37-pin SubD link (female) is always attached to the 37-pin
SubD link (male) of the WIMAN.

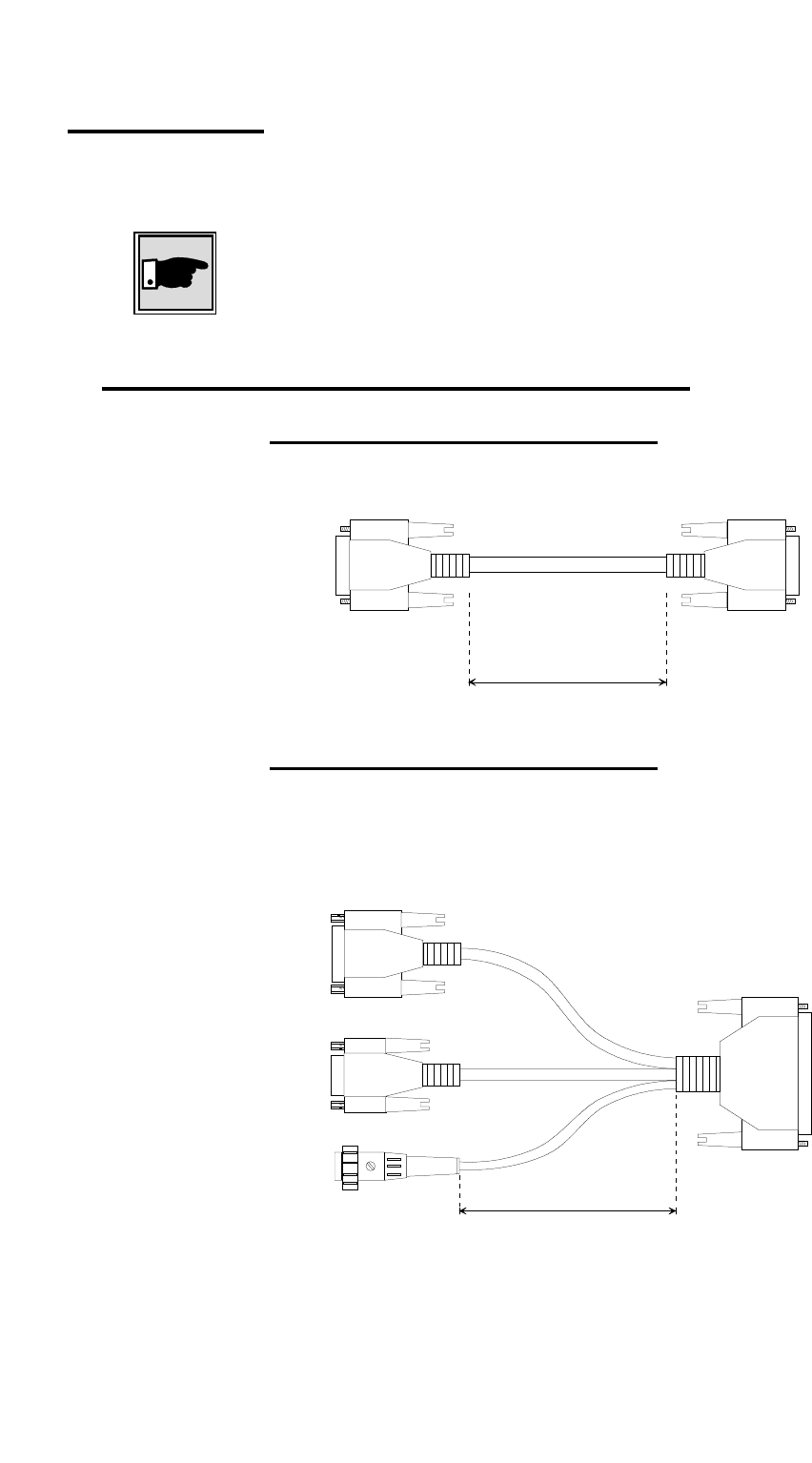

8.4.1 Hybridcable used for X21-configurations
Zeromodemcable (NULL-C21-15)
Zeromodemcable for direct connection of 2 WIMAN devices. In
addition a Hybrid cable Type H4 is needed.
female
14 x 0,15 mm², shielded,
UV-resistant
1000 mm
S 15 S 15
female
Hybridcable Type1 (H1-X21C-37)
This hybrid cable is used with indoor installations and provides
the power connection, a direct link for a Frame Relay capable
Router as well as a configuration interface (RS-232).
S 37
male
female
11 x 0,15 mm², shielded
3 x 0,15 mm², shielded
5 x 0,15 mm²
female
with nut
300 mm
S 15
DIN Renk,
3
p
in
S 9
female
with nut
