Appendix A: WIMAN Hardware
8.4.2 Hybrid cable when using the IP-routing-functionality

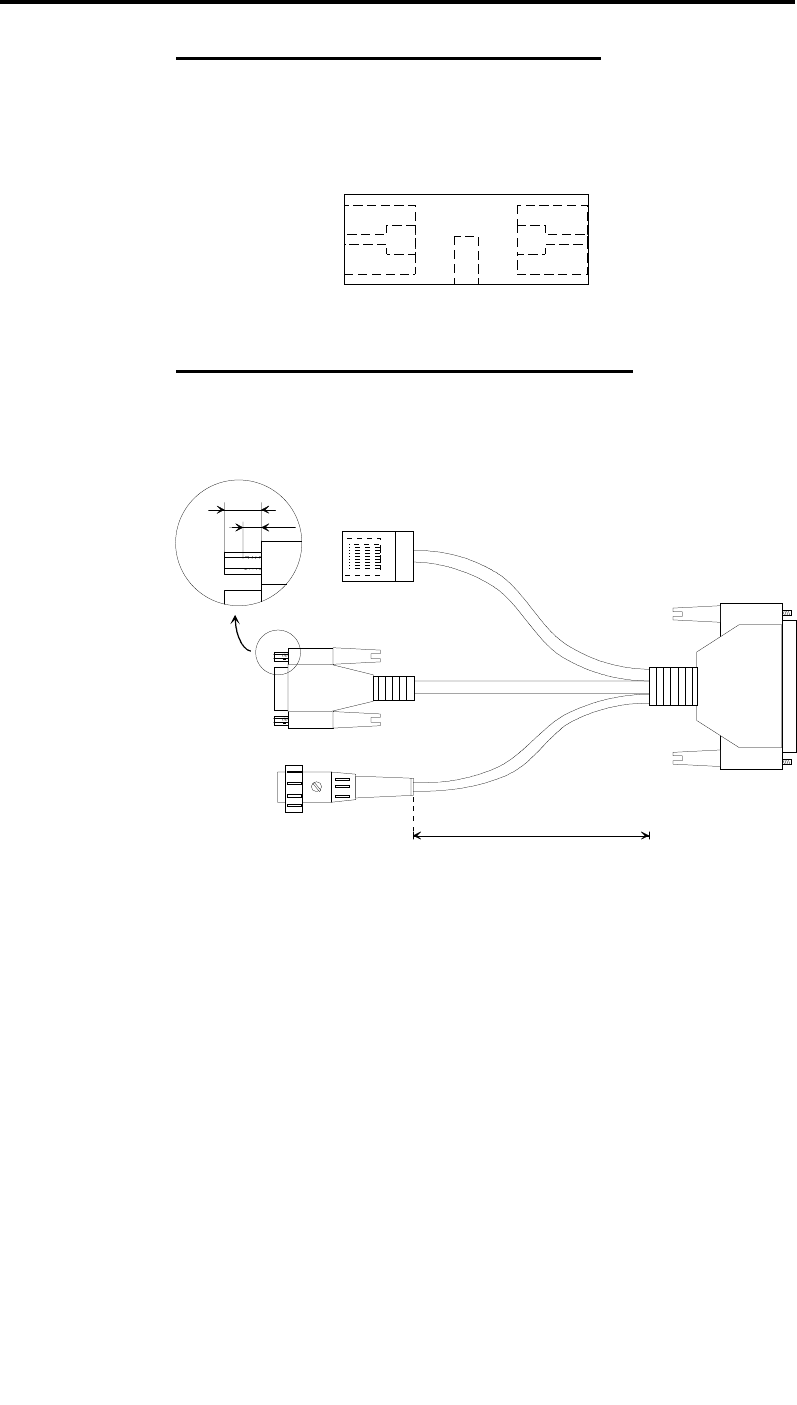

RJ45-Connectionbox (HA-ETH-45)
This link box is attached between the Ethernet cable of the local
network and the hybrid cable H3-eth-37ext. Into the box the cur-
rent supply link of the WIMAN, which is connected to the
power pack, is integrated.
RJ 45
female
RJ 45
female
Hybrid cable Ethernet 1 (H1-ETH-37)
This Ethernet hybrid cable is used for indoor installations and
provides the power connection, a direct link to the local network
(over Ethernet cable) and a configuration interface (RS-232).
SubD 37
female
4 x 0,15 mm², shielded, paired
3 x 0,15 mm², shielded
5 x 0,15 mm²
300 mm
DIN Renk, 3 pin,
180 de
g
rees
,
male
Date: 10. July 2000
SubD 9
female
with nuts
RJ45,
female
2 mm
6 mm
