ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
Mounting Screw (B)
Wire Connector (F)
Ball Nut (G)
Mounting Strap (A)
Green Grounding
Screw (C)
Fixture mounting
Screw (D)
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

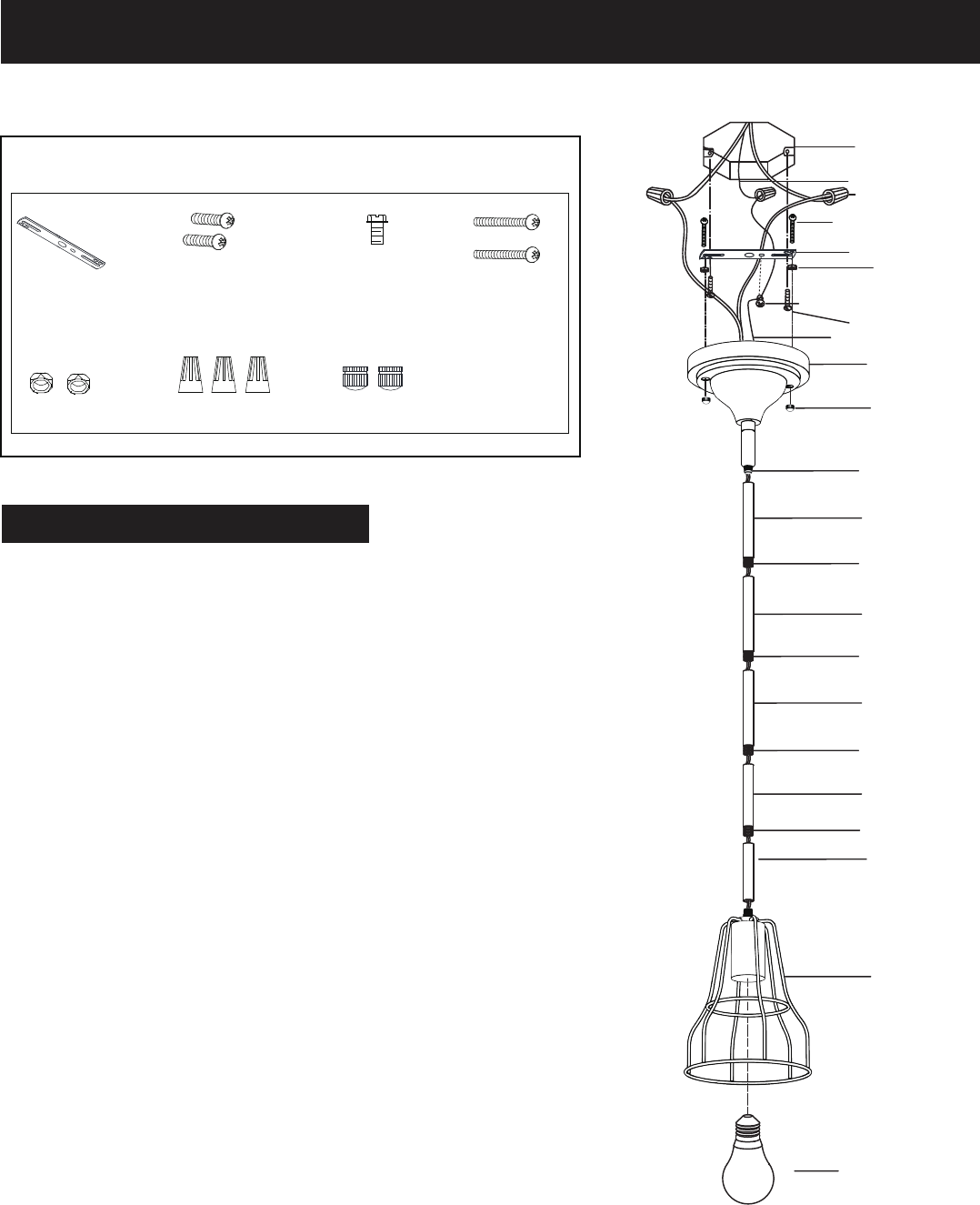

Hardware Package (included):
Lock Nut (E)
Turn off the power at fuse or circuit box
Installation Steps
Outlet Box
House Grounding Wire
Wire Connector (F)
Fixture mounting Screw (D)
Lock Nut (E)
Mounting Screw (B)
Fixture Grounding Wire
Green Grounding Screw (C)
Canopy
Ball Nut (G)
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Threaded Pipe
Upper Rod
Upper Rod
Upper Rod
Middle Rod
Lower Rod
Metal Shade
Bulb Type A Max.100W
(Not included)
1. Attach the mounting strap to the outlet box by using two mounting screws.
2. Thread the fixture wire through the canopy kit, and then secure the
rod assembly to the set nipple of the canopy kit.
3. Rod Connections:
a. Thread the fixture wire from the fixture through the lower rod, and then
secure the lower rod onto fixture using the threaded pipe.
b. Thread the fixture wire through the middle rod, and then secure the
middle rod onto the lower rod using the threaded pipe.
c. Thread the fixture wire through the upper rod, and then secure the
upper rod onto the middle rod using the threaded pipe.
Note: Length adjustable from 14-3/8" to 56-3/8". Use fewer rods
if shorter length is desired.
d. Thread the fixture wire through the fixture canopy and then secure
the fixture canopy onto the upper rod using the threaded pipe.
4. Pull out the source wires from the outlet box. Make wire connections
using wire connectors as follows:
---Connect the smooth-coated wire (marked) from the fixture to the
black wire from the power source.
---Connect the ribbed-coated wire (unmarked) from the fixture to the
white wire from the power source.
---Attach the fixture grounding wire to the mounting strap with the green
grounding screw, and then connect it to the house grounding wire with
a wire connector.
Carefully put the wires back into the outlet box.
5. Attach the canopy kit to the mounting strap by inserting the fixture mounting
screws, and then secure it with two ball nuts.
Mounting Strap (A)
