Specifications

SATA2.5TestAdapterUserManual


Page|28
©2010,2011WilderTechnologies,LLC
DocumentNo.910‐0011‐000Rev.B





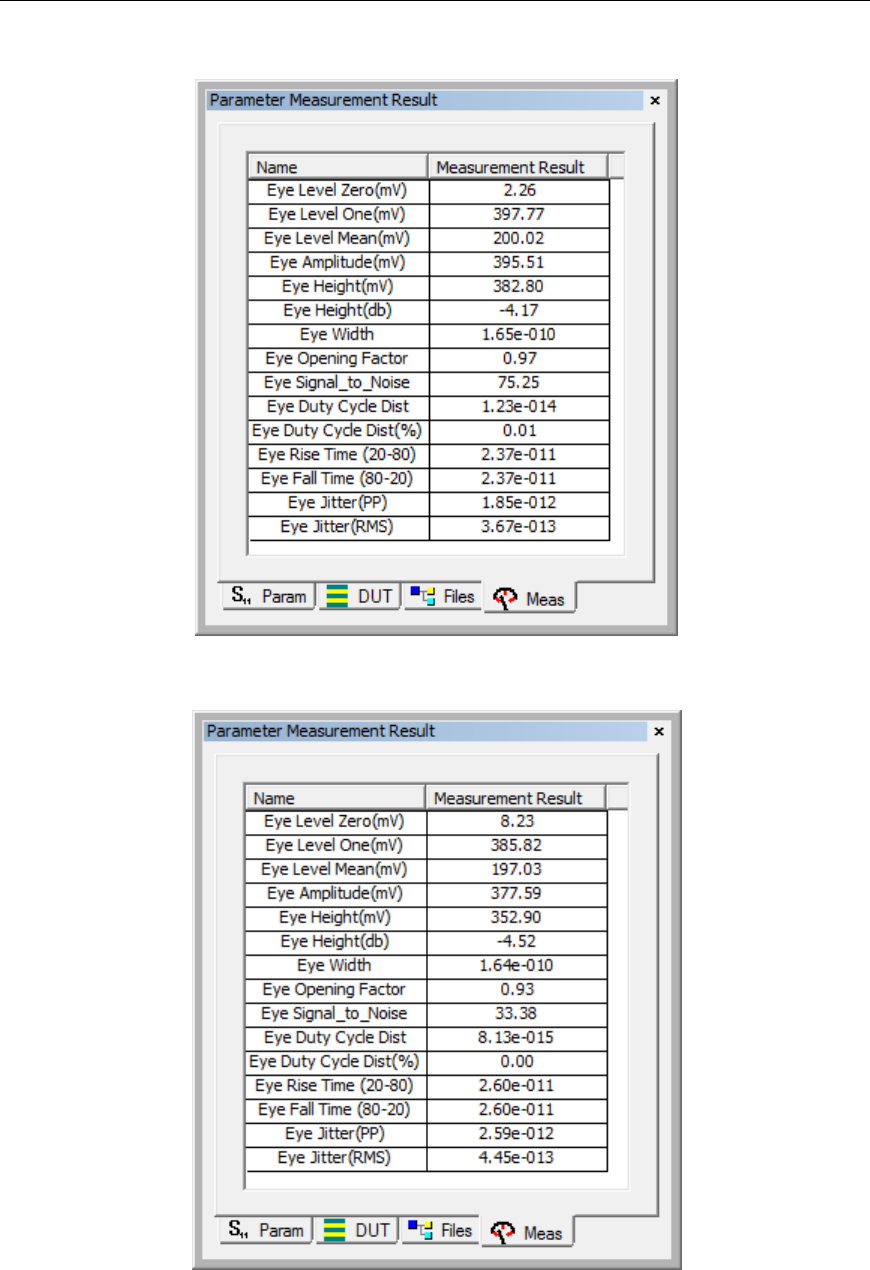

Figure 13. Typical mated pair 6 Gb/s eye data, with calibration (top) and without calibration (bottom)
